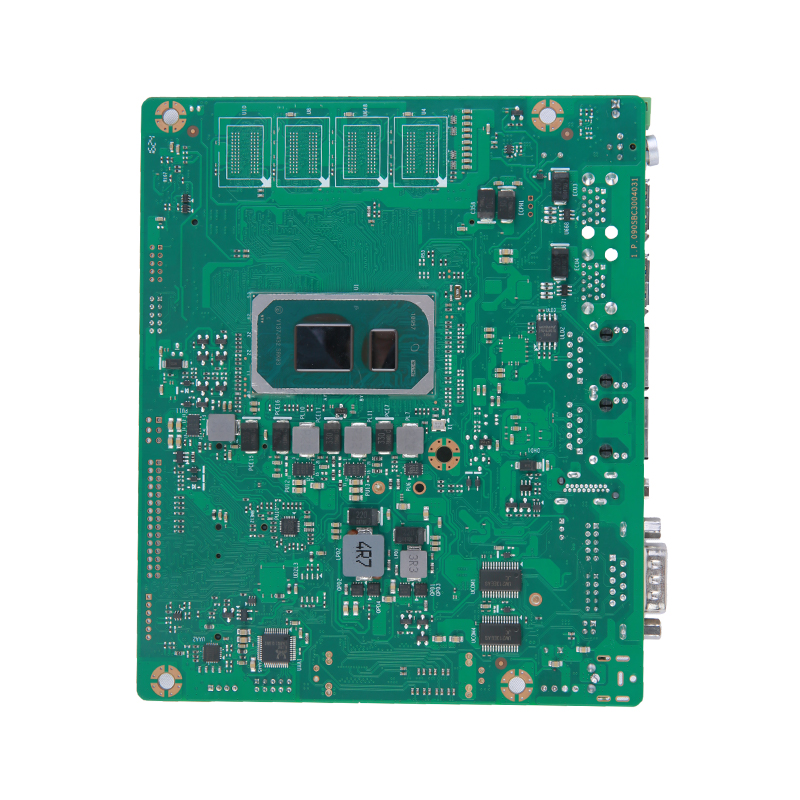

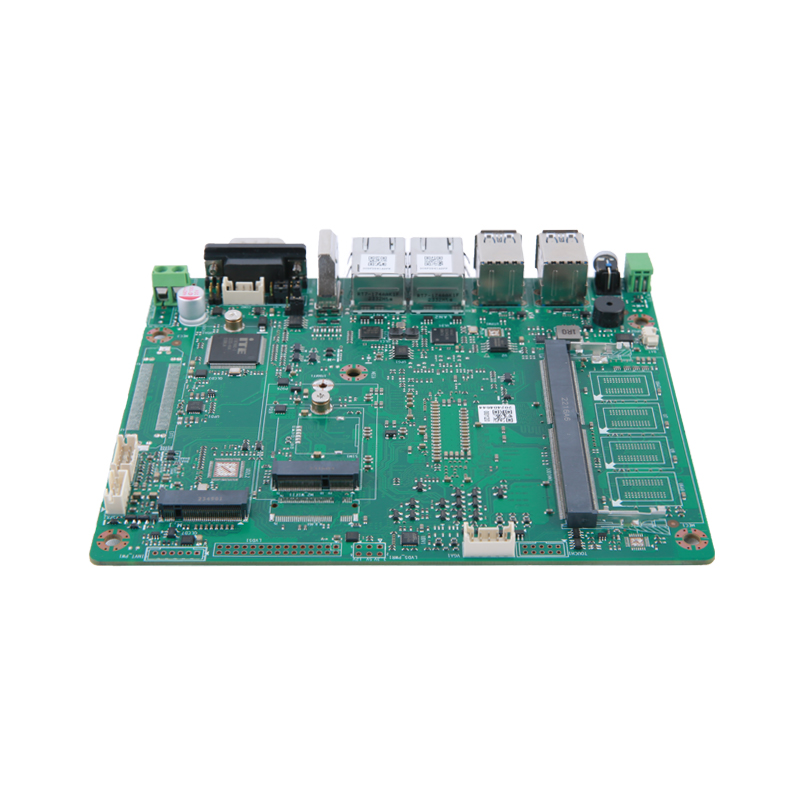

Product Model SBC3-TGLA-2T1C4U
XYC Industrial Mini Motherboard (Model SBC3-TGLA-2T1C4U) supports 11th Gen Intel Core i5, 64GB DDR4 (SO-DIMM + optional onboard).
Features WiFi6/4G/5G support, extendable COM ports, high-speed M.2, and triple display—ideal for industrial environments (-20℃~55℃).
Category | content |
| Internal Central Processing Unit (CPU) | lntel Core i5 1135G7(4C8T,4.40GHz~4.20GHz,8MB) |
| Chipset | Based on Intel Tiger Lake platform |
| Memory | 1 * DDR4 SODIMM slot, supporting up to 32GB |
| (Optional: onboard DDR4 RAM, support Max. 32G) | |
| storage | 1*M.2 M-Key 2280, support NVME/NGFF |
| Display | |
| Triple Display | Intel Iris Xe Graphics |
| 1*HDMI、1*VGA、1*LVDS(optional EDP) | |
| I/O interface | |

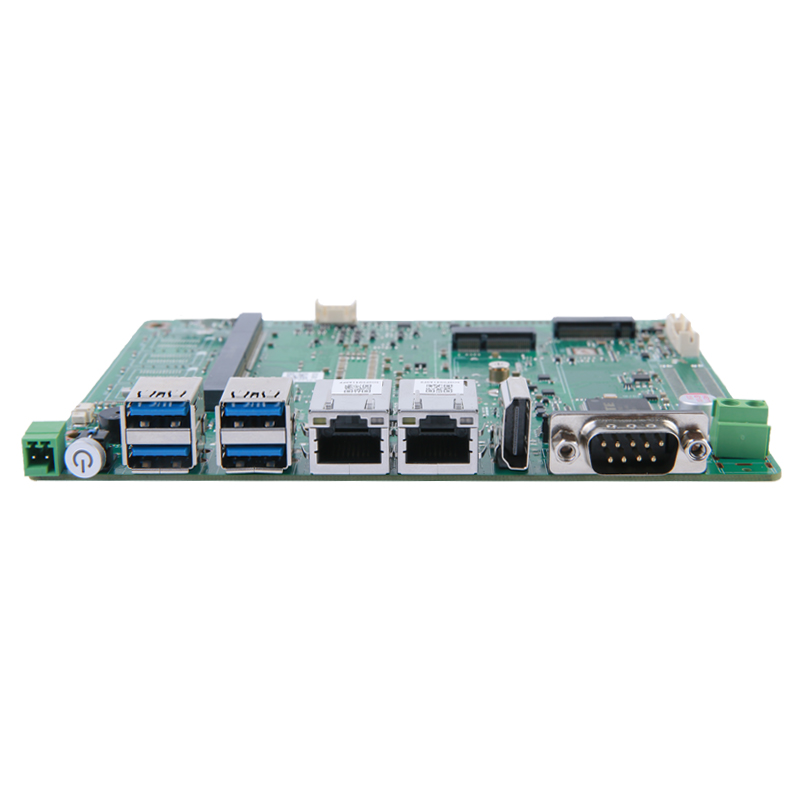

I/O | 1*2PIN Remote switch terminal, 1*Power, 4*USB 3.0, 2*RJ45 LAN ports |
1*HDMI, 1*COM RS-232/485, 1*DC-IN | |
Inner I/O | 1*2x5 PIN Support resistive/capacitive touch screen, 1*VGA |
1*LVDS, 1*LVDS Power jumper, 1*INVT backlight power | |
| 1*2x5 PIN Front audio; 1*4PIN Speaker | |
1*2x5 PIN, for 1*COM RS-232 port | |
1*EXT slot (Extendable for: 4*COM ports, 2*PCI-e x1, 1*SATA, 2*USB, PS2) | |
1*4PIN CPU_FA | |
| Expansion slot | 1* M.2 E-KEY 2230 CNVI, support Wi-Fi |
1* M.2 B-KEY 2242, support 4G LTE/5G Module | |
| Electrical performance | |
| Power type | Suggest using 12V 5A |
| Institutional parameters | |
| size | 150mm*125mm |
| Network support | |
| Network port | 1* Intel i226V 2.5GbE, 1* i219-LM 10/100/1000MB LAN port |
| System support | |
| operating system | Windows 10/11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
