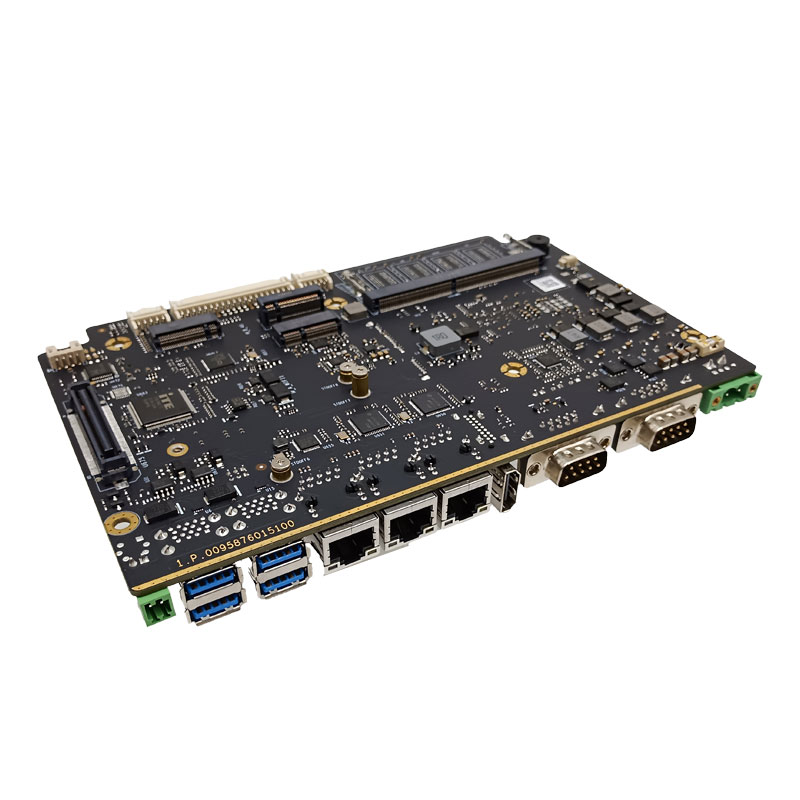

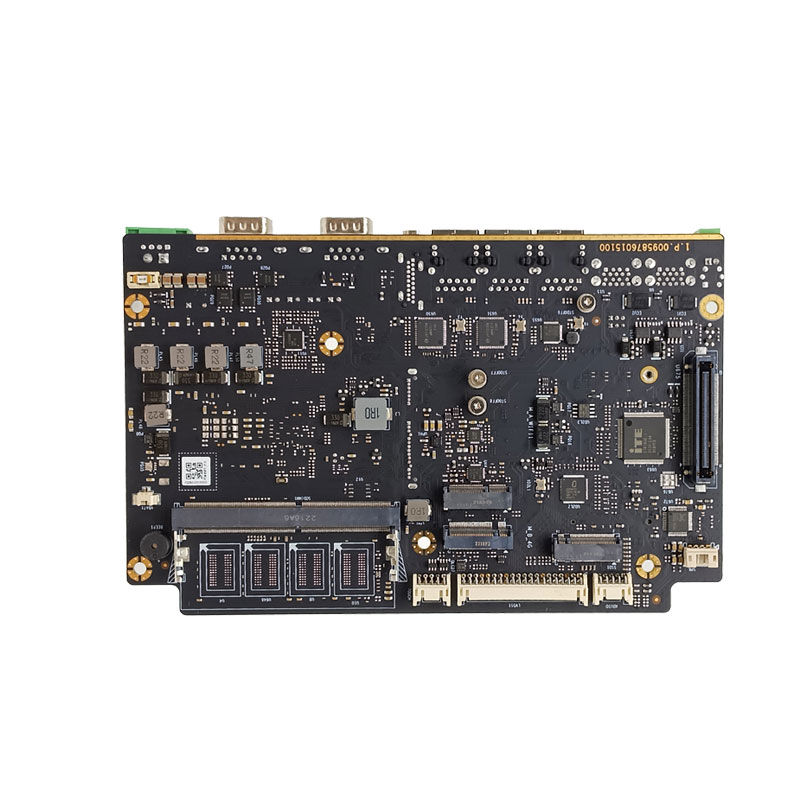

XYC Industrial SBC (Model SBC4-WKLA-2T2C) supports Intel Whiskey Lake/Comet Lake, onboard 8GB DDR4 (up to 16GB).
Features M.2 2280+2.5"SATA storage, 3*Intel LAN, 2COM ports, and Wifi/4G LTE support—ideal for industrial automation (-20℃~55℃).
Category | content |
| Internal Central Processing Unit (CPU) | Core I5 8265U(4C/8T, 1.60~3.90GHz, 6MBCache, 15-25W) |
| Core I7 8665U(4C/8T, 1.90~4.80GHz, 8MBCache, 15-25W) | |
| Core I5 10210U(4C/8T, 1.60~4.20GHz ,6MBCache, 15-25W) | |
| Chipset | Based on Intel Whiskey Lake, Comet Lake platform |
| Memory | 1xSODIMM RAM slot |
| Onboard DDR4 8GB (2133MHz) | |
| storage | 1* M-KEY 2280 slot support NVME/NGFF |
| 1*2.5" SATA 3.0 socket | |
| Display | |
| Single Display | Integrated Intel UHD Graphics for 8th Gen/10th Gen |
| Support 1*HDMI | |
(1*VGA extendable) | |
| I/O interface | |

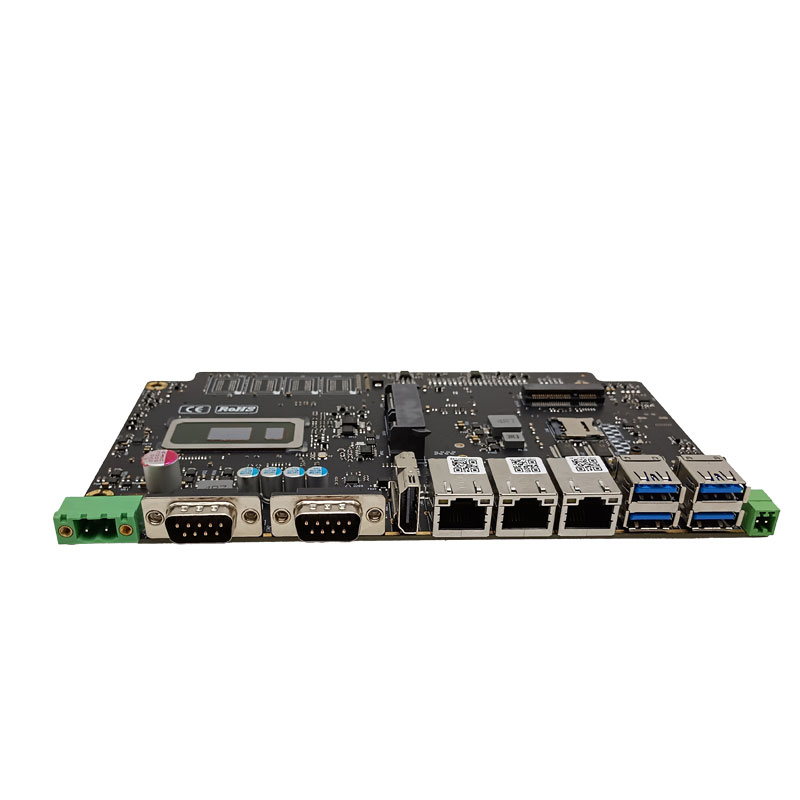

| Front I/O | 1*HDMI; 4*USB3.0; 1*2PIN PX power Port; 3*LAN |
| 2*COM(RS-232/485); 1*Remote switch terminal | |
| Expansion slot | 1*Mini PCIe slot(for Wifi/ 4G LTE) |
| 1* SIM card slot *[ext] | |
| Electrical performance | |
| Power type | DC 9~36V Power input |
| Institutional parameters | |
| size | 195mm*125mm |
| Network support | |
| Network port | 2*Intel i210-AT, 1*i219-LM 10/100/1000M Lan ports |
| System support | |
| operating system | Supports Windows 10/11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
*[ext]: This component is an extension and is not included by default.
