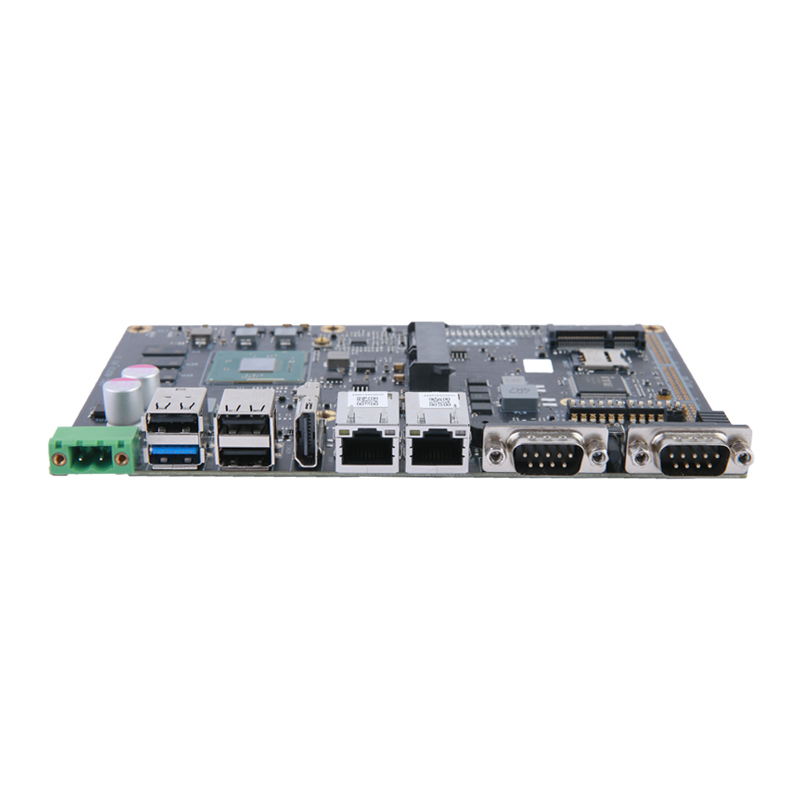

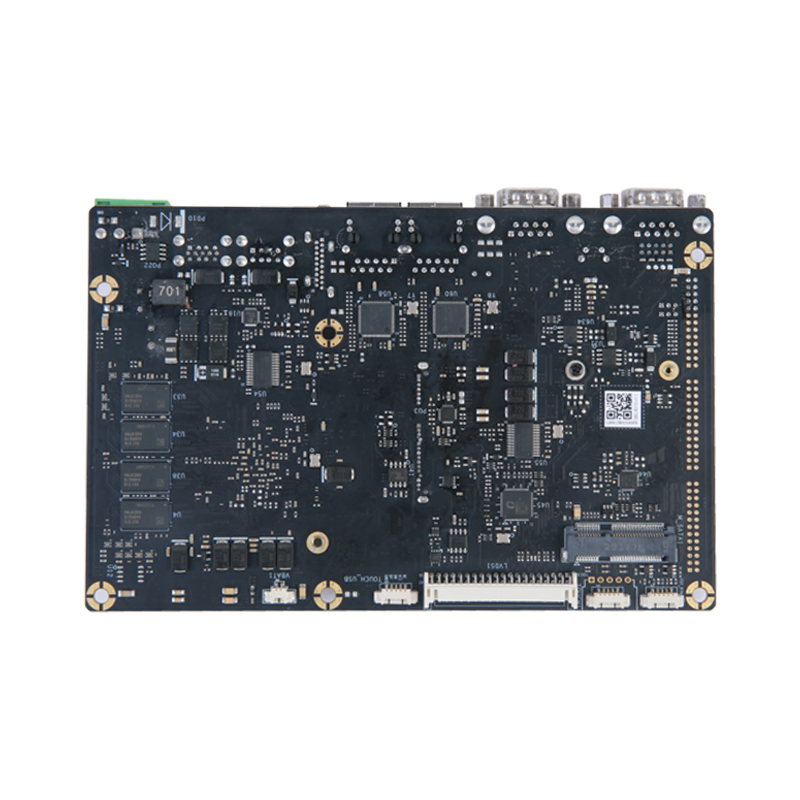

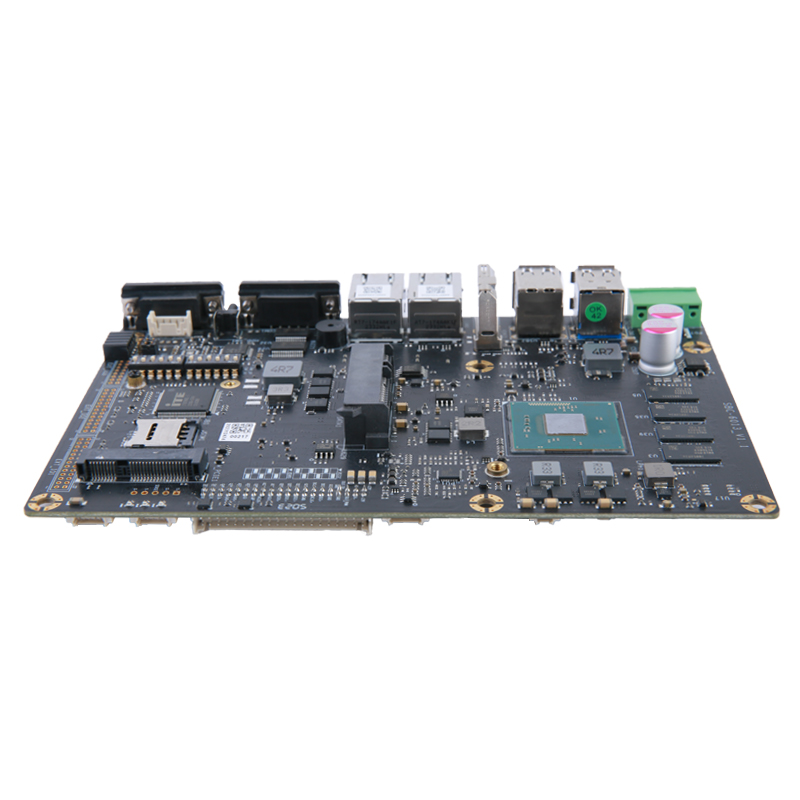

Product Model: SBC4-BTYA-J1900-2T2C
XYC Industrial Motherboard (Model SBC4-BTYA-J1900-2T2C) supports Intel Bay Trail platform, onboard 4GB DDR3L.
Features 2*Intel LAN, 2COM ports, mSATA+2.5"SATA storage, and Wifi/4G LTE support—ideal for IoT industrial applications (-20℃~55℃).
Category | content |
| Internal Central Processing Unit (CPU) | lntel Celeron J1900(4C/4T, 2.00~2.42GHz, 2MB Cache) |
| Chipset | Based on Intel Bay Trail platform |
| Memory | Onboard 1333MHz DDR3L 4GB (Customized 8GB) |
| storage | 1* mSATA slot |
| 1*2.5" SATA 3.0 socket | |
| Display | |
| Single Display | Integrated Intel HD Graphics |
| Support 1*HDMI | |
(1*VGA extendable) | |
| I/O interface | |
| Front I/O | 1*HDMI; 1*USB3.0; 3*USB2.0; 1*2PIN PX power Port |
| 2*LAN;2*COM(RS-232/485) | |
1* Power button; 1*Remote switch terminal | |
| Expansion slot | 1*Mini PCIe slot(for Wifi/ 4G LTE) |
| 1* SIM card slot *[ext] | |
| Electrical performance | |
| Power type | DC 9~36V Power input |
| Institutional parameters | |
| size | 175mm*113mm |
| Network support | |
| Network port | 2*Intel i210-AT 10/100/1000M Lan ports |
| System support | |
| operating system | Supports Windows 7/10; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
*[ext]: This component is an extension and is not included by default.
