Product model ITXB-1R6U
XYC Mini PC for Home Use (Model ITXB-1R6U) features a fan-cooled aluminum alloy housing, onboard Intel 3rd~11th Gen i3/i5/i7 CPUs.
Equipped with 1*SODIMM RAM slot, 6*USB ports, 1*Realtek GbE LAN, and 1xMINI PCI-E slot for WiFi installation.
This mini itx computer supports diverse home entertainment and daily use needs with reliable performance.
Category | content |
| Internal Central Processing Unit (CPU) | Support full series of Mobile, Embedded CPU |
| Chipset | Based on Intel's full series of platforms |
| Memory | 1*204PinSO-DIMM DDR3L/ Max. 8/16GB; DDR4/Max. 32/64GB (according to CPU) |
| storage | 1 x 2.5" SATA bay /1 x mSATA slot |
| display | |
| Double display | Integrated Intel® HD Graphic cards |
1*HDMI,1*VGA | |
| I/O interface | |

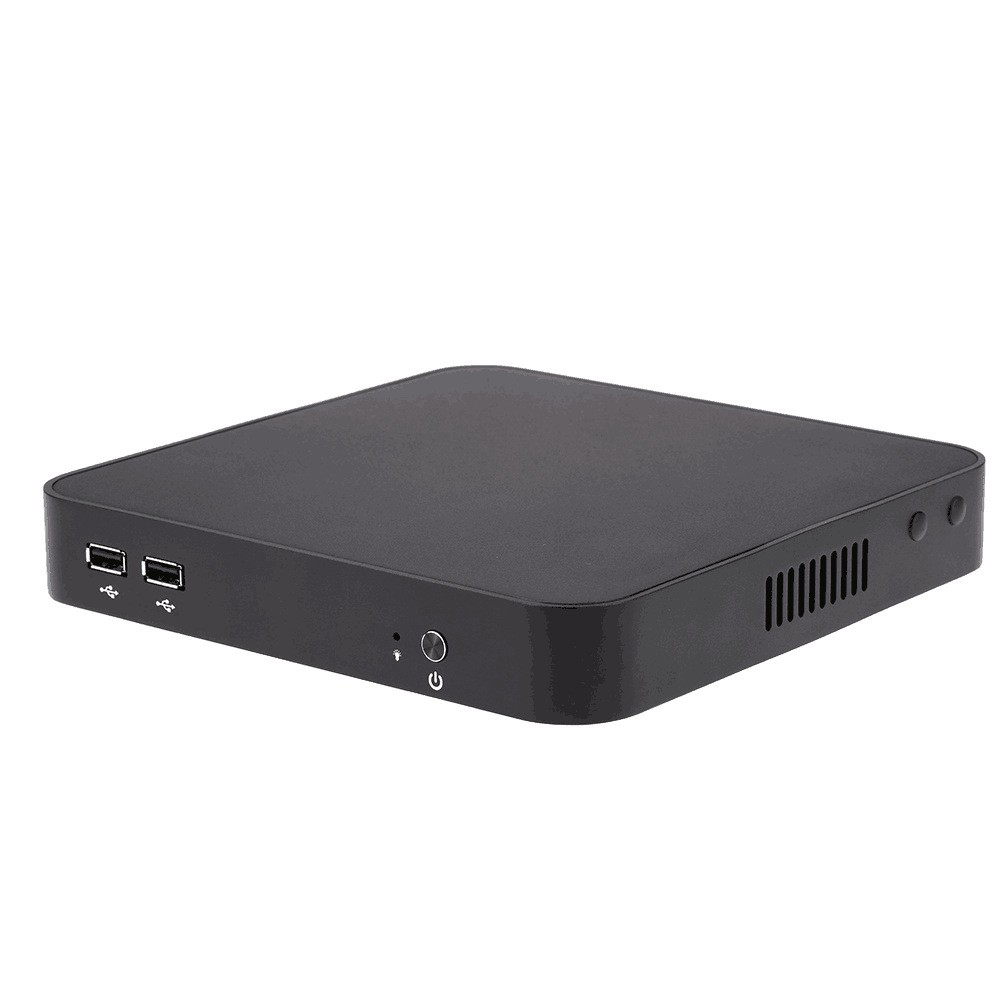

| Front I/O | 1*Power;2*USB2.0 |

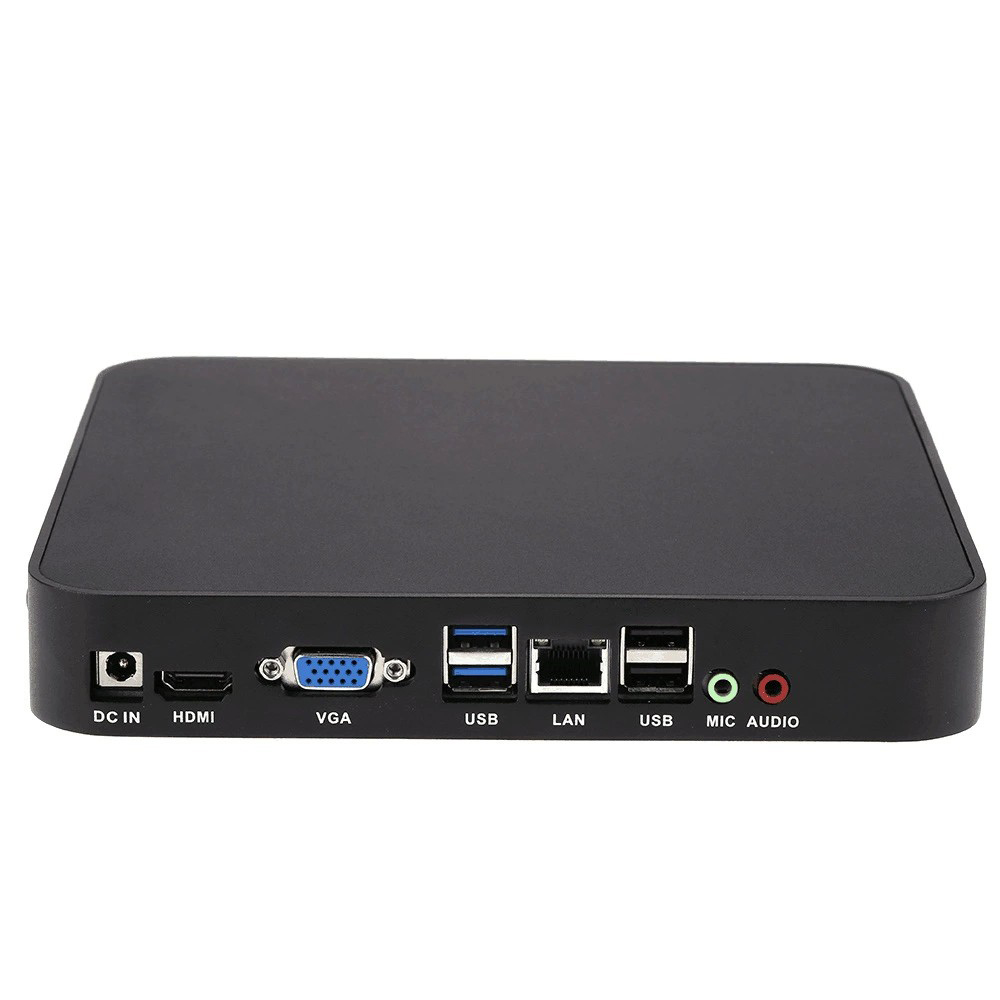

| Rear I/O | 1*DC-IN;1*HDMI;1*VGA |
| 2*USB3.0;1*RJ-45 LAN port;2*USB2.0 | |
| 1*MIC;1*LINE OUT | |
| Electrical performance | |
| Power type | DC 12V |
| Size & Weight | |
| Chassis size | 197*197*36mm |
| Chassis N.W. | 1.25kg |
| Package size | 233mm*233mm*100mm |
| Package weight | 1.7kg |
| Network support | |
| Network port | 1*RTL8111G/H GbE LAN port, support Wake-on-LAN/WIFI/ Bluetooth;Support Diskless Boot/Power on Boot, Timed turn on/shutdown |
| System support | |
| operating system | Support Windows 8/Windows 10/Windows 11; Linux |
| Environmental parameters | |
| working temperature | 0℃~50℃ |
| Storage temperature | -20℃~55℃ |
| Working humidity | 5% - 90% @40°C Non-condensing |
1 x 2.5" SATA bay /1 x mSATA slot
