Product model ITXH-1R6U

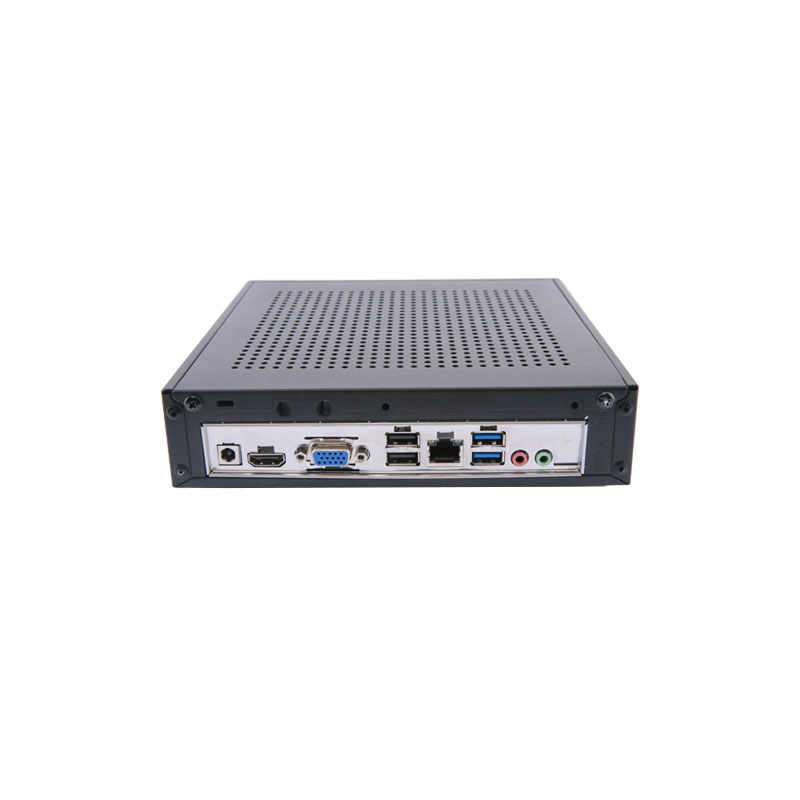

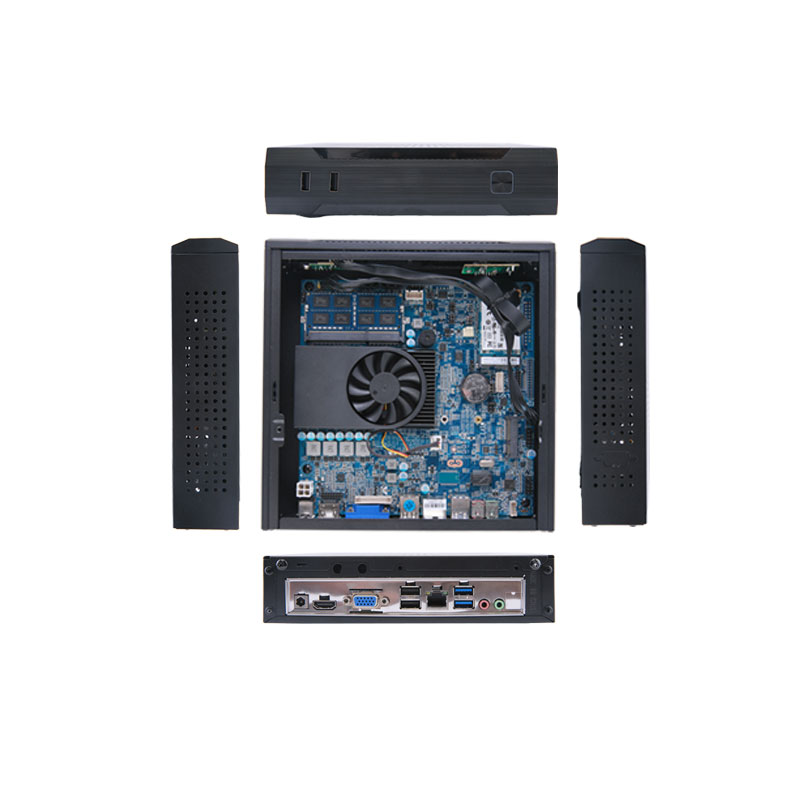

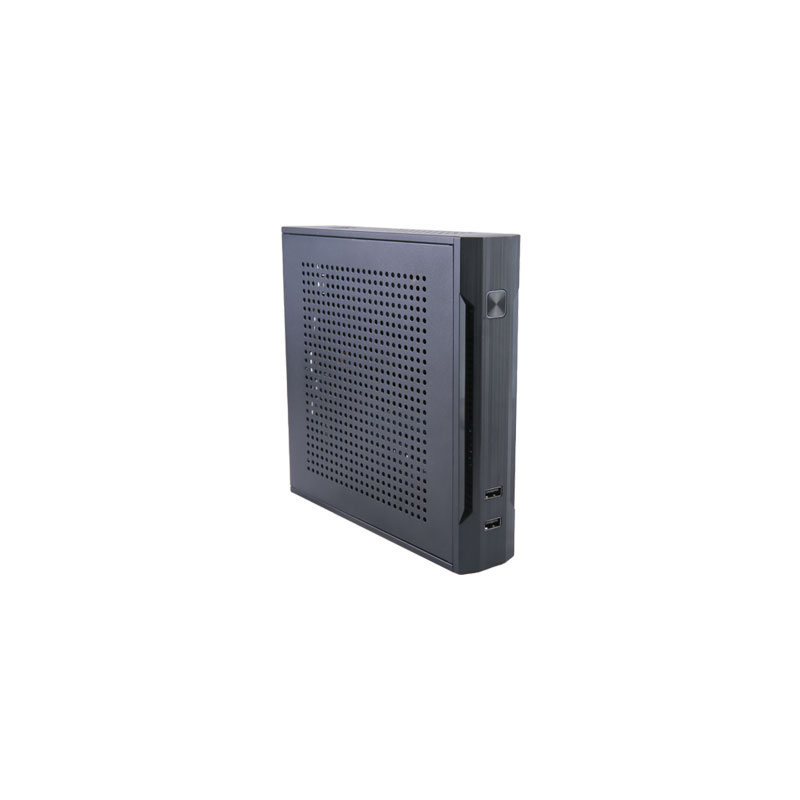

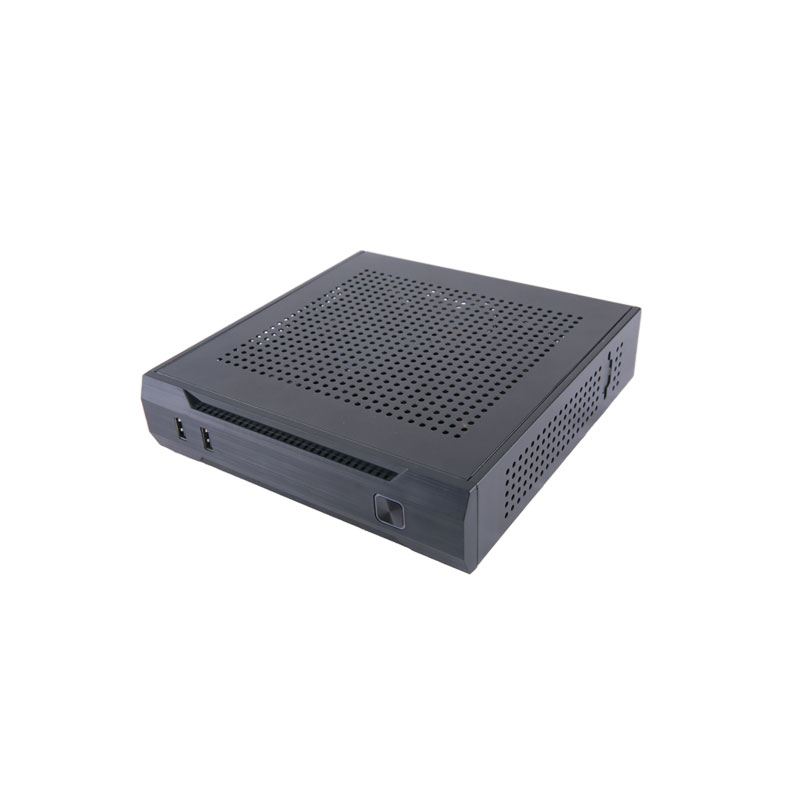

XYC Business Mini PC (Model ITXH-1R6U) is a compact mini itx computer supporting Celeron/Core i3/i5/i7 CPUs.
Features HDMI/VGA dual display, optional 2.5”SATA socket, and supports WiFi, 4G/5G modules.
Equipped with smart fan cooling, it supports diskless boot and power-on boot, ideal for space-saving business scenarios.
Category | content |
| Internal Central Processing Unit (CPU) | Support full series of Mobile, Desktop CPU |
| Memory | 1~2 SO-DIMM DDR3L/DDR4 slot(s) (according to CPU) |
| storage | 1 x 2.5" SATA bay /1 x mSATA slot |
| display | |
| Double display | Integrated Intel® HD Graphic cards |
| 1* VGA(Max.：2048 x 1280@60Hz) | |
1*HDMI(Max.: 2560 x 1600@60Hz) | |
| I/O interface | |
| Front I/O | 1*Power;2*USB2.0 |
| Rear I/O | 1*DC-IN;1*HDMI;1*VGA |
| 2*USB3.0;1*RJ-45 LAN port;2*USB2.0 | |
| 1*MIC;1*LINE OUT | |
| Electrical performance | |
| Power type | DC 12V |
| Size & Weight | |
| Chassis size | 194mm*197mm*45mm(L*W*H) |
| Chassis N.W. | 0.95kg |
| Package size | 233mm*233mm*100mm(L*W*H) |
| Package weight | 1.48kg |
| Network support | |
| Network port | 1*RTL8111G/H GbE LAN port, support Wake-on-LAN/WIFI/ Bluetooth;Support Diskless Boot/Power on Boot, Timed turn on/shutdown |
| System support | |
| operating system | Support Windows 8/Windows 10/Windows 11; Linux |
| Environmental parameters | |
| working temperature | 0℃~50℃ |
| Storage temperature | -20℃~55℃ |
| Working humidity | 5 ℃~90 ℃ R.H., non condensing |
