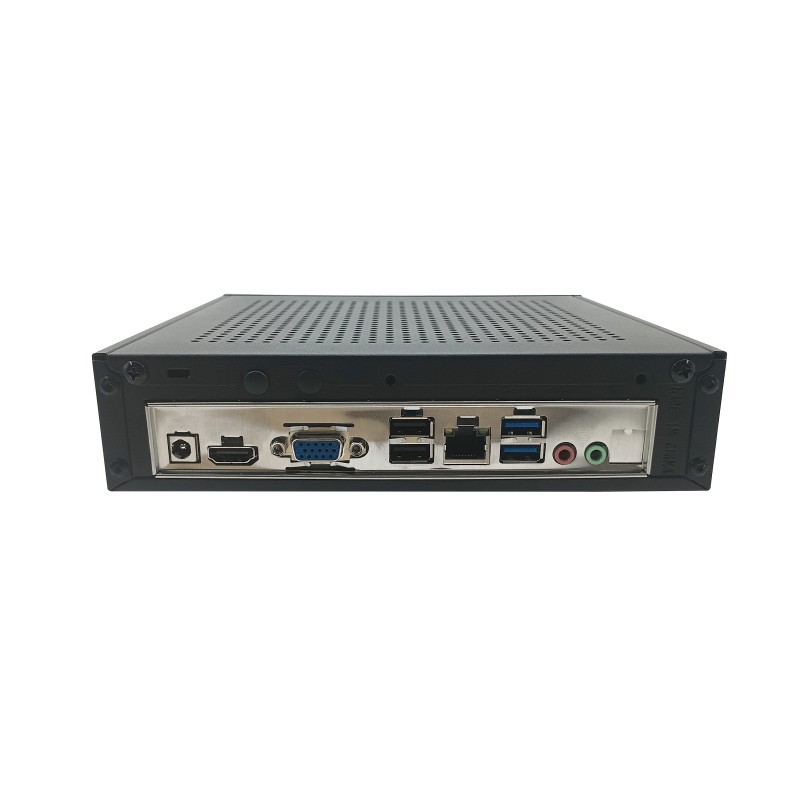

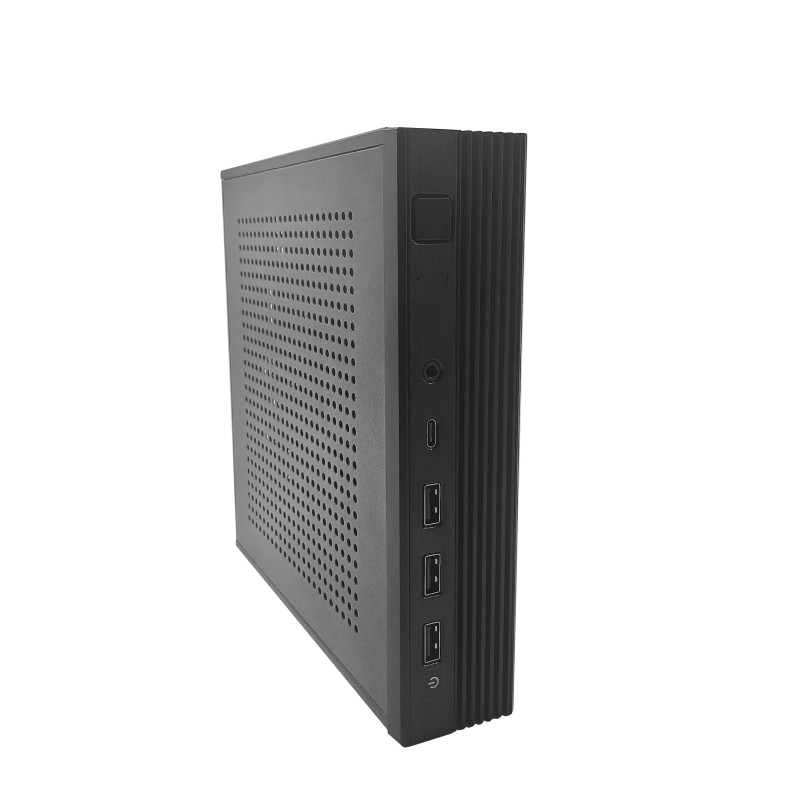

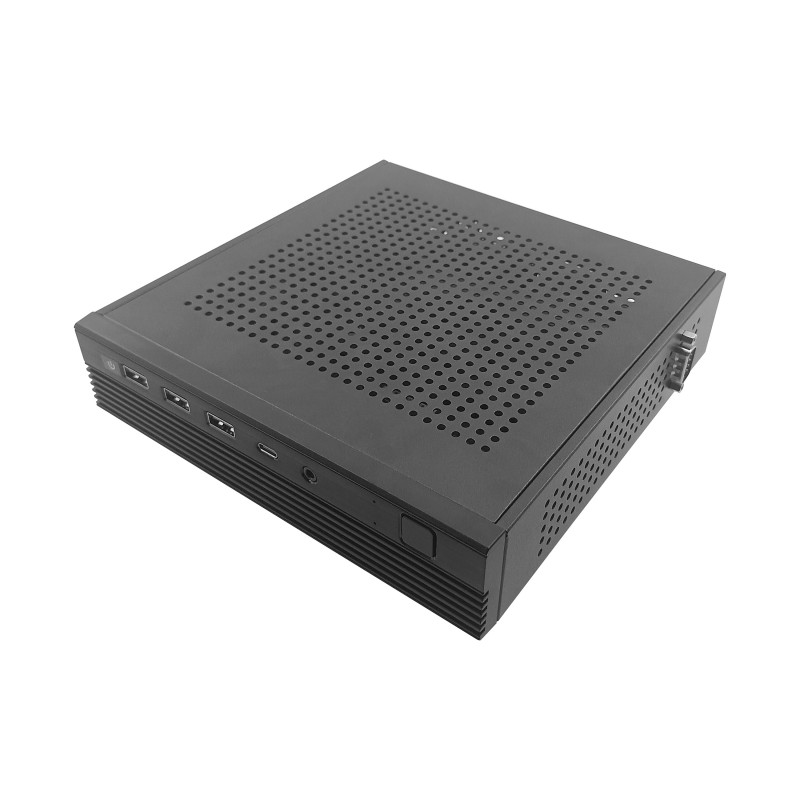

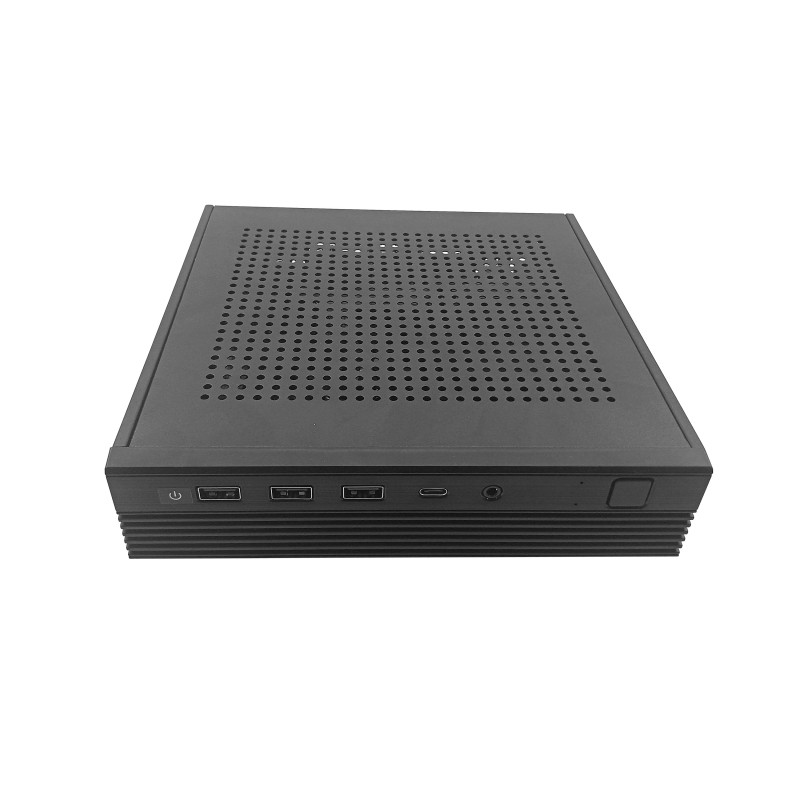

Product model ITXE-1R7U
XYC Mini PC ITXE-1R7U: Supports multiple Intel processors, 2.5-inch HDD installation, and 7USB ports.
Features HDMI/VGA dual display, WiFi wake-up, smart fan cooling, and diskless/power-on boot—ideal for office environments.
Category | content |
| Internal Central Processing Unit (CPU) | Support full series of Mobile, Desktop CPU |
| Chipset | Based on Intel's full series of platforms |
| Memory | 1*204PinSO-DIMM DDR3L/ Max. 8/16GB; DDR4/Max. 32/64GB(according to CPU) |
| storage | 1 x 2.5" SATA bay /1 x mSATA slot |
| display | |
| Double display | Integrated Intel® HD Graphic cards |
1*HDMI,1*VGA | |
| I/O interface | |
| Front I/O | 1*Power;1*Audio;1*Type-C;3*USB2.0 |
| Rear I/O | 1*DC-IN;1*HDMI;1*VGA |
| 2*USB3.0;1*RJ-45 LAN port;2*USB2.0; | |
| 1*MIC;1*LINE OUT | |
| Electrical performance | |
| Power type | DC 12V |
| Size & Weight | |
| Chassis size | 194mm*197mm*45mm(L*W*H) |
| Chassis N.W. | 0.95kg |
| Package size | 233mm*233mm*100mm(L*W*H) |
| Package weight | 1.48kg |
| Network support | |
| Network port | 1*RTL8111G/H GbE LAN port, support Wake-on-LAN/WIFI/ Bluetooth;Support Diskless Boot/Power on Boot, Timed turn on/shutdown |
| System support | |
| operating system | Support Windows 8/Windows 10/Windows 11; Linux |
| Environmental parameters | |
| working temperature | 0℃~50℃ |
| Storage temperature | -20℃~55℃ |
| Working humidity | 5 ℃~90 ℃ R.H., non condensing |
