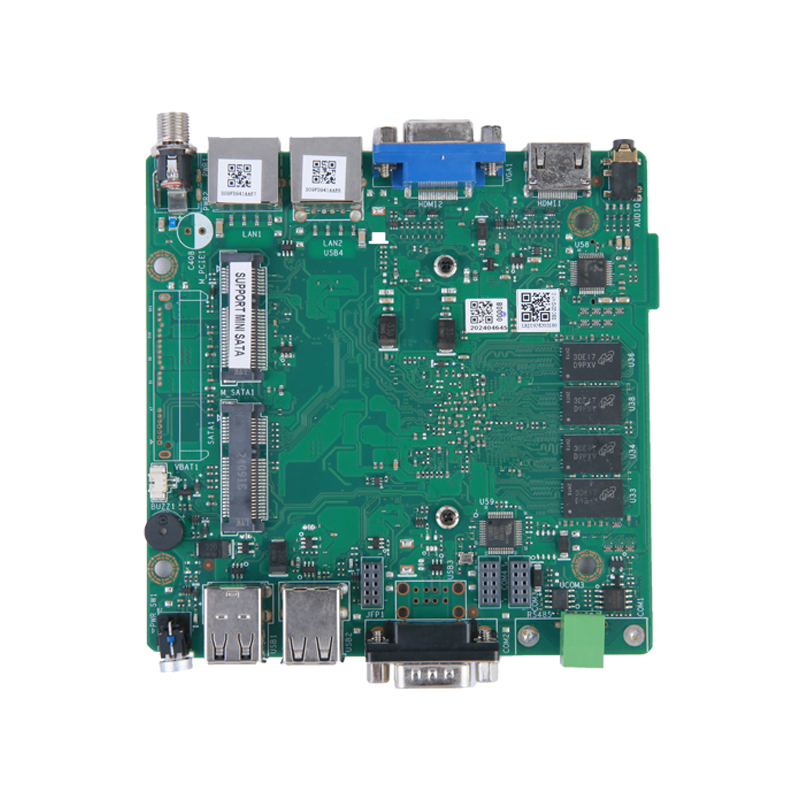

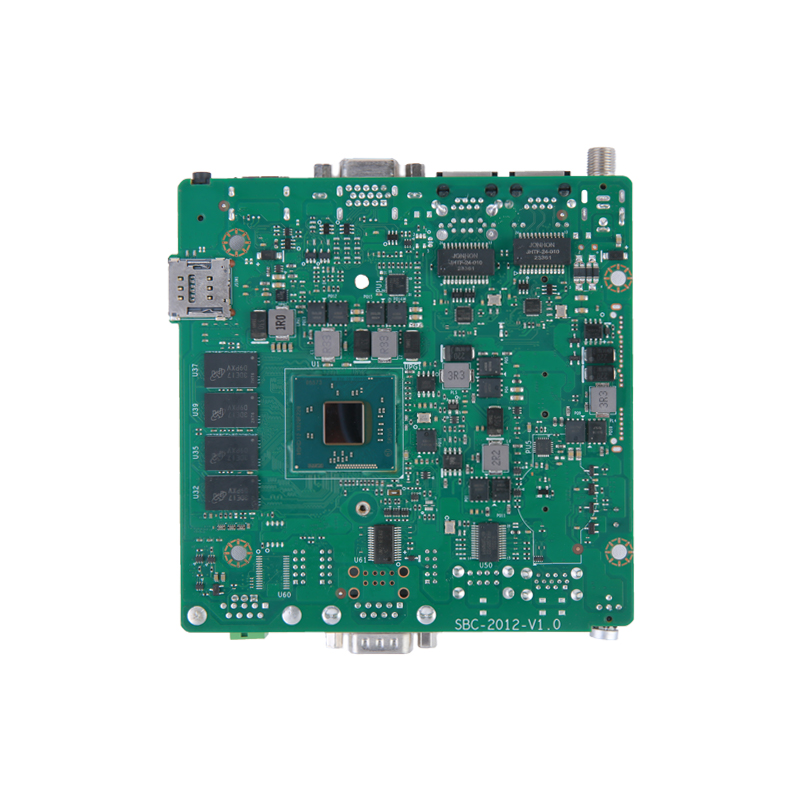

Product Model NANO-BTYC-2R4U1C
XYCIndustrialNanoITXMotherboard(ModelNANO-BTYC-2R4U1C)supportsIntelBayTrailCPU,onboardRAM,2LAN,4USBports.
FeaturesWifi/4GLTEmodulesupport,extendableCOMports,9-24VDCwidepower—idealforindustrialautomationandIoTdevices.
Category | content |
| Internal Central Processing Unit (CPU) | lntel Celeron J1900(4C4T,2.0GHz~2.42GHz,2MB） |
lntel Celeron N2840(2C4T,2.16GHz~2.58GHz,1MB） | |
| Chipset | Based on the Intel Bay Trail platforms |
| Memory | Onboard DDR3L 4GB（Optional 2GB、8GB） |
| storage | 1* full length mSATA slot, |
1* 2.5" SATA 3.0 slot | |
| Display | |
| Double Dispaly | Integrated Intel HD Graphics |
| 1*HDMI, 1*VGA | |
Optional 2*HDMI | |
| I/O interface | |

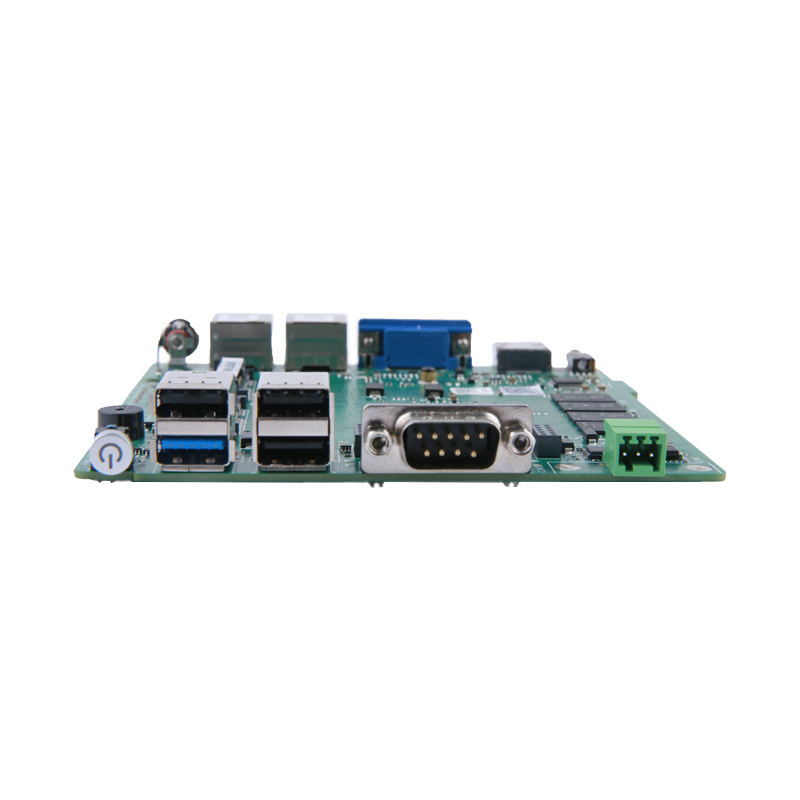

Front I/O | 1*Power button |
| 1*USB3.0；3*USB2.0 | |
1* 3-PIN COM1 RS-485, 1* DB9 COM2 RS-232 （COM2 customizable 2*USB2.0) | |

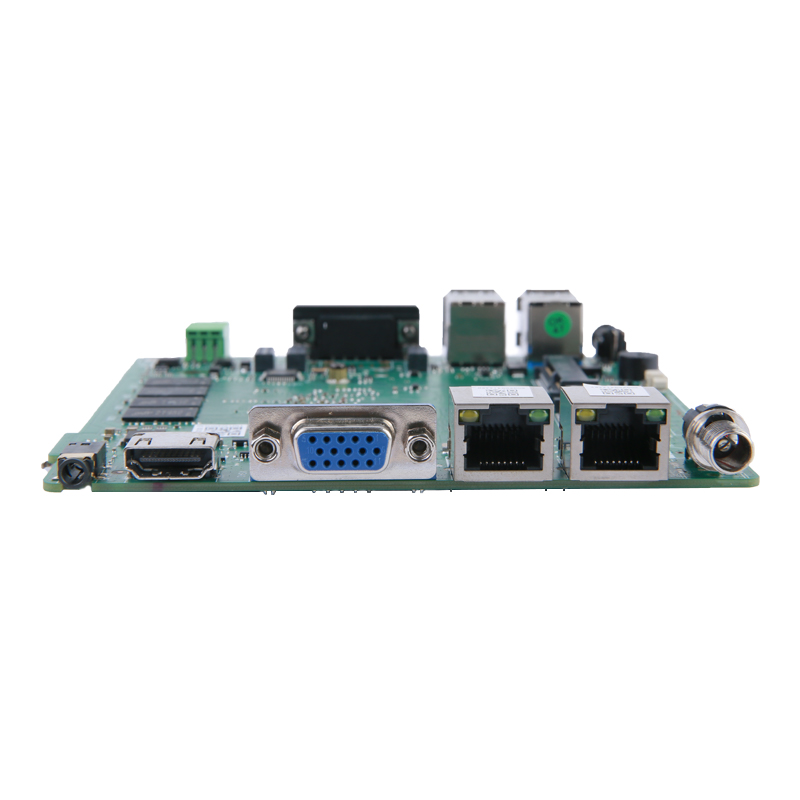

Rear I/O | 1*DC-IN；2*RJ45 GbE LAN ports；1*VGA(Customizable 1*HDMI )，1*HDMI |
1*Audio jack(2 in 1) | |
| Inner I/O | 2*COM（RS232 TTL) *[ext] |
| 1*USB2.0 *[ext] | |
| Expansion slot | 1* full length Mini PCIe Slot, support Wifi/4G |
1* SIM card slot | |
| Electrical performance | |
| Power type | DC 9-24V Wide range power supply |
| Institutional parameters | |
| size | 120mm*120mm |
| Network support | |
| Network port | 2* Realtek 8111H 10/100/1000M Lan ports |
| System support | |
| operating system | Windows 7/10; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
*[ext]: This component is an extension and is not included by default.
