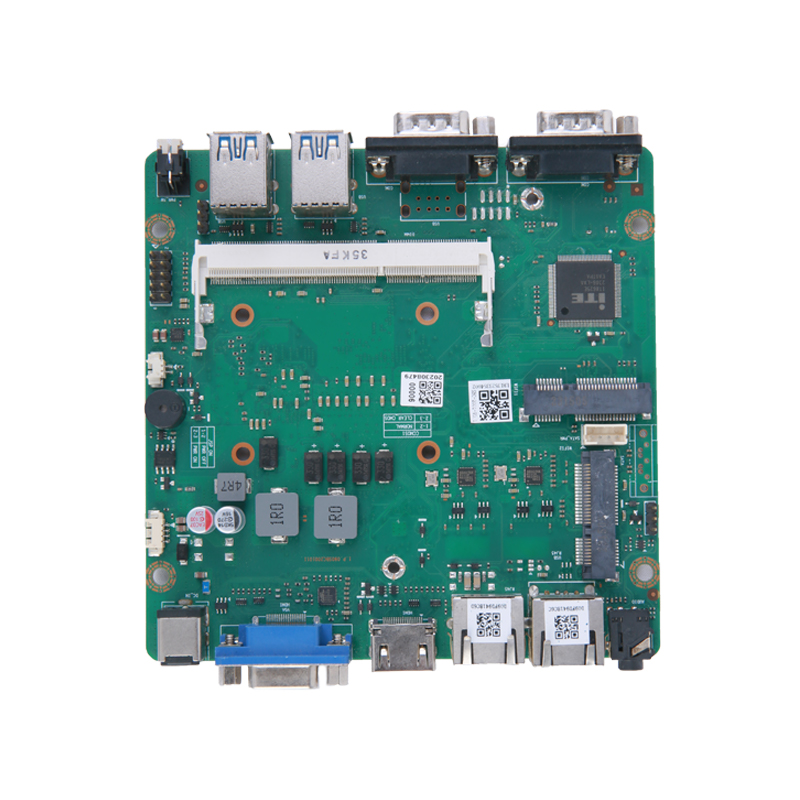

Product Model NANO-HSWA-2R2C4U
XYCHomeMiniMotherboard(ModelNANO-HSWA-2R2C4U)supportsIntelHaswell/Broadwell4/5thGeni3/i5/i7,1SO-DIMMRAM,28111HGbELAN.
FeaturesflexibleLAN/COM/USBconfig,2HDMIsupport—idealforhomeentertainmentandlightcomputing.
Category | content |
| Internal Central Processing Unit (CPU) | lntel Core i5-4200U(2C4T,1.60GHz~2.60GHz,3MB) |
lntel Core i5-5200U(2C4T,2.20GHz~2.70GHz,3MB) | |
| Chipset | Based on Intel Haswell/Broadwell platform |
| Memory | 1*DDR3L SO-DIMM RAM slot, Max support 8GB |
| Storage | 1* full length mSATA slot |
1* 2.5" SATA 3.0 socket | |
| Display | |
| Double Display | Integrated Intel® HD Graphics 4400/5500 |
| 1*HDMI,1*VGA(Can customized 1*VGA to 1*HDMI) | |
| I/O interface | |

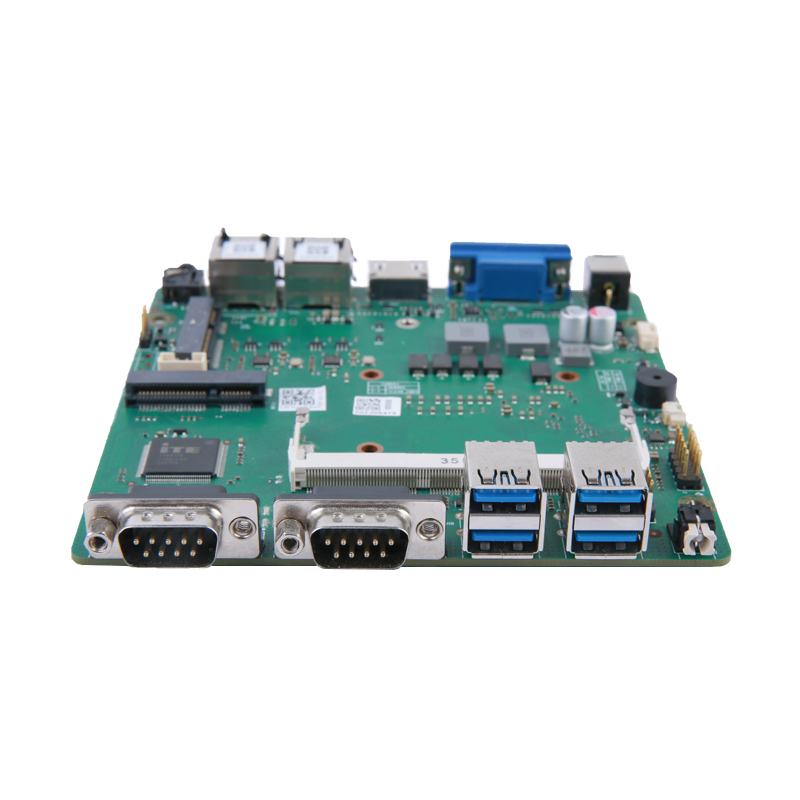

Front I/O | 1*Power button,4*USB3.0 |
2*COM RS-232; (Can customized COM 2 to 2*USB2.0) | |

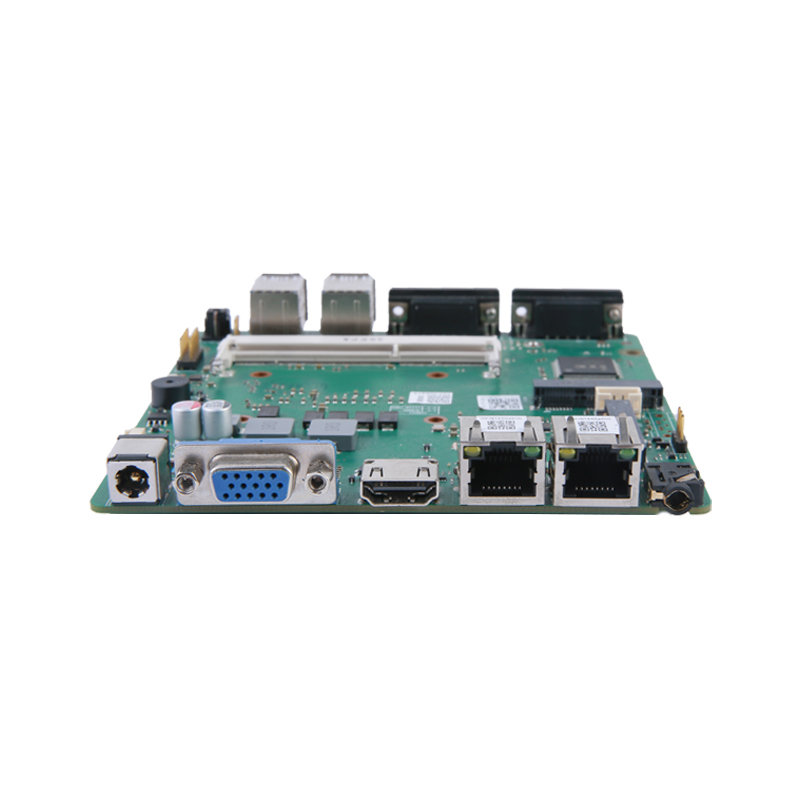

Rear I/O | 1*DC-IN |
1*HDMI;1*VGA(Customizable to HDMI);1*Audio(2 in 1) | |
2*RJ 45 LAN Ports; (Can customized LAN2 to 2*USB2.0) | |
| Expansion slot | 1* Mini PCIe slot, support Wi-Fi module *[ext] |
1*SIM card slot, 4G module *[ext] | |
| Electrical performance | |
| Power type | DC 12V |
| Institutional parameters | |
| size | 120mm*120mm |
| Network support | |
| Network port | 2* Realtek 8111H 10/100/1000M Lan ports |
| System support | |
| operating system | Windows 7/10; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
*[ext]: This component is an extension and is not included by default.
