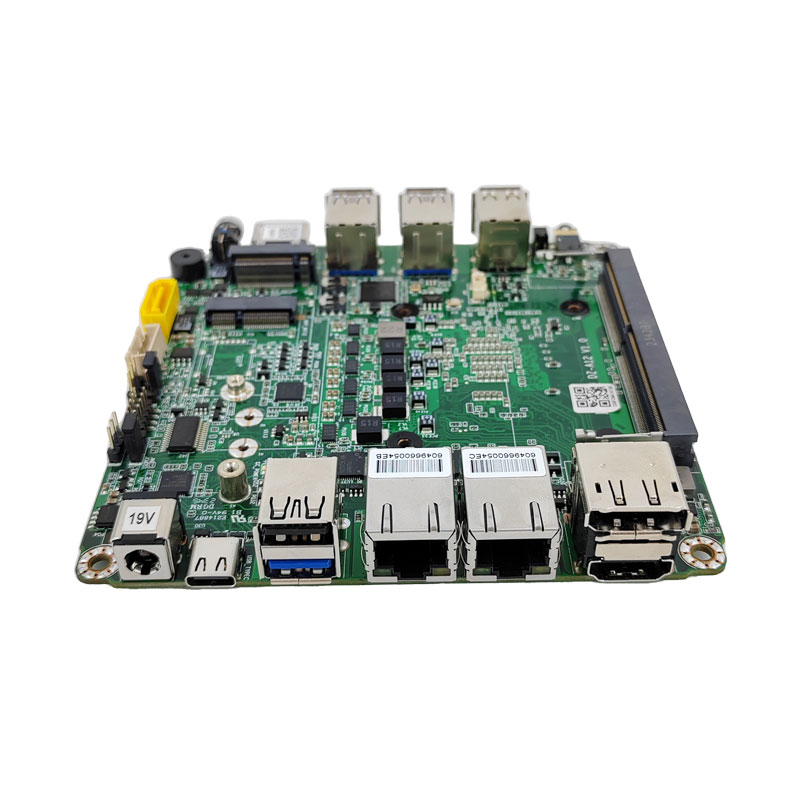

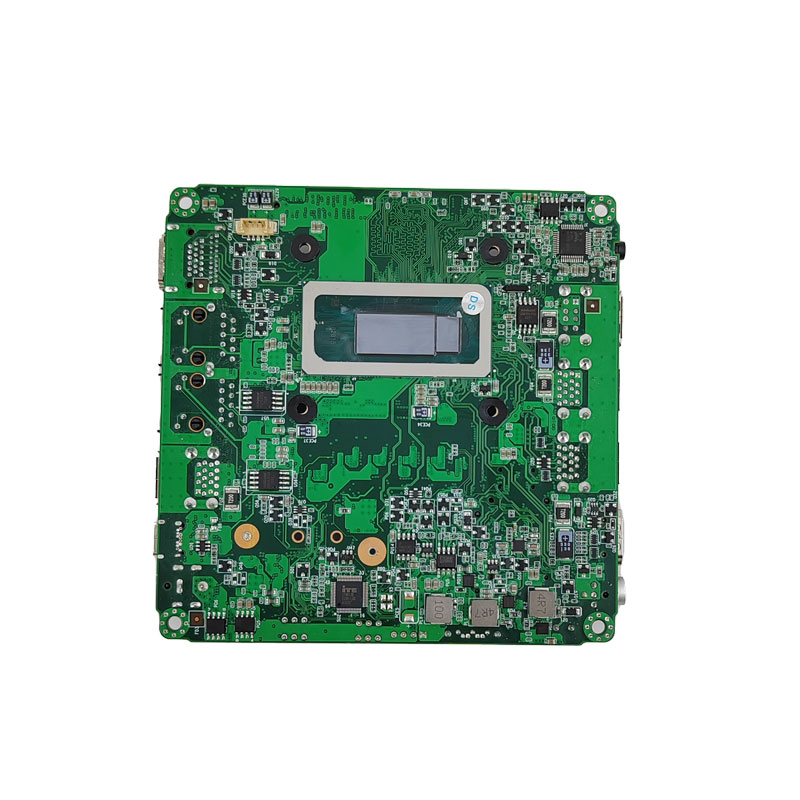

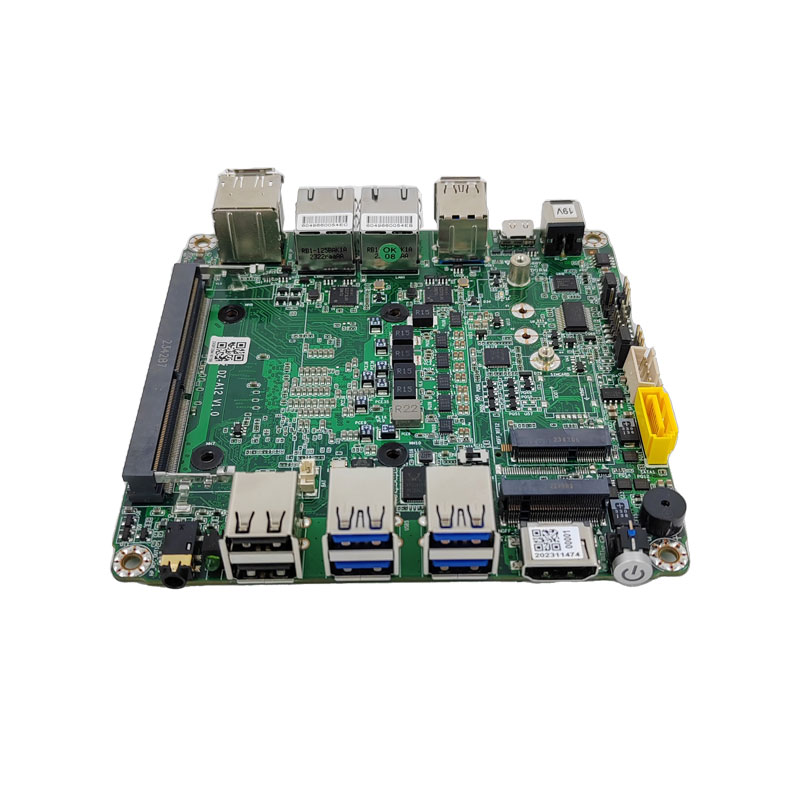

Product Model NANO-RPLB-2T8U
XYC Retail POS Nano ITX Motherboard (Model NANO-RPLB-2T8U) supports 13th Gen Intel i3/i5/i7, 32GB DDR4, 2Intel 2.5G NICs.
Features turbo cooler, 1Type-C+2HDMI+1DP quad display—ideal for retail POS systems and high-efficiency checkout terminals.
Category | content |
| Internal Central Processing Unit (CPU) | Intel Core i5-13500H(4 P-cores, 8 E-cores, 16Threads, 3.5GHz~4.7GHz, 18MB Cache) |
Intel Core i5-1335U(2 P-cores, 8 E-cores, 12Threads, 3.4GHz~4.6GHz, 12MB Cache) | |
| Chipset | Based on the Intel Raptor Lake platforms |
| Memory | 1 * DDR4 SODIMM slot, supporting up to 32GB |
| storage | 1 * M.2 M-KEY 2280 interface, supporting NVMe/NGFF (Controlled by 2 switches beside M.2 slot) |
1* 2.5" SATA 3.0 slot | |
| Display | |
| Triple Dispaly | Integrated Intel® Iris® Xe Graphics eligible 2*HDMI, 1*DP, 1*Type-C output Supports synchronous dual display, asynchronous triple display |
| I/O interface | |
Front I/O | 1* Audio; 4*USB3.0; 2*USB2.0; 1*HDMI 1*Power button |
Rear I/O | 1*DC-IN; 1*Type C 1*USB3.0; 1*USB2.0 2*RJ 45;1*HDMI; 1*DP |
| Built in interface | 1* JME、1* JCMOS、1* JCOM、1* J_AT/ATX、1* SATA、 1* SATAPWR |
| Expansion slot | 1*M.2 E-KEY 2230/CNVi Slot, support Wifi module 1*M.2 B-KEY Slot, support 4G LTE/5G module *[ext] 1* SIM card slot *[ext] |
| Electrical performance | |
| Power type | Suggest using 19V 4.74A |
| Institutional parameters | |
| size | 120mm*120mm |
| Network support | |
| Network port | 2*I226-V 2.5G Ethernet |
| System support | |
| operating system | The operating system supports Windows 10/11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
*[ext]: This component is an extension and is not included by default.
*[opt]: This component has multiple options, only one of them is supported to be installed.
