Product Model NANO-EHLA-J6412-2R1C6U
XYC Digital Signage Mini Motherboard (Model NANO-EHLA-J6412-2R1C6U) supports Intel Elkhart Lake J6412, 16GB DDR4, 2LAN.
Features triple display (HDMI/DP/Type-C), 4 COM ports, Wifi/4G/5G module support—ideal for digital signage and interactive displays.
Category | content |
| Internal Central Processing Unit (CPU) | lntel Celeron J6412(4C4T,2.0GHz~2.6GHz,1.5MB） |
| Chipset | Based on the Intel Elkhart Lake platform |
| Memory | 1*DDR4 SO-DIMM,Max support 16GB |
| Storage | 1*M.2 M-Key 2280,support NVME/NGFF |
1*2.5" SATA3.0 direct slot | |
| Display | |
| Triple Display | Intel® UHD Graphics for 10th Gen Intel Processors |
| Support 1*HDMI,1*DP,1*Type-C,Sync or Async triple display | |
Type-C output does not support hot swapping | |
| I/O interface | |

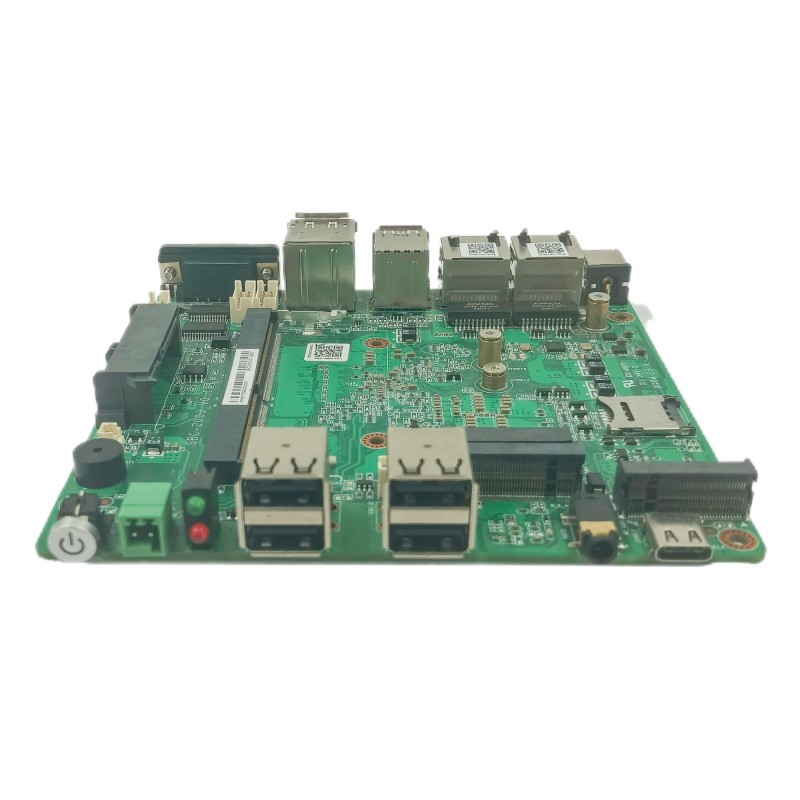

Front I/O | 1*Power button,1*2PIN Remote Switch Terminal |
4*USB2.0,1*Audio( 2 in 1),1*Type-C | |

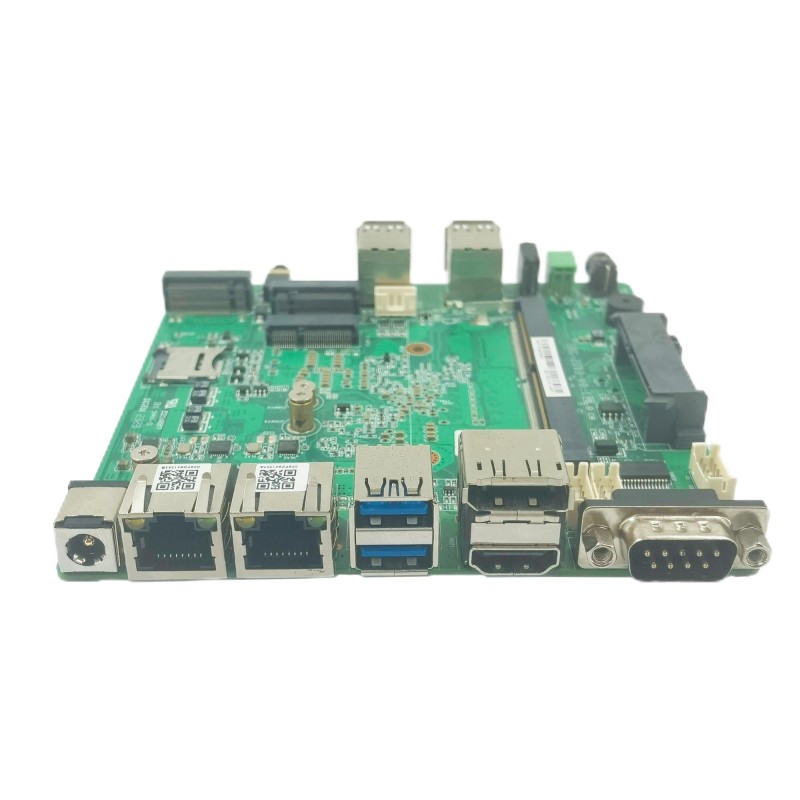

Rear I/O | 1*DC-IN,2* RJ45 GbE LAN ports |
| 2*USB3.0,1*HDMI, 1*DP | |
1*COM RS-232 | |
| Inner I/O | 3*COM RS-232 2*5PIN |
| 1*USB2.0 1*4Pin | |
| Expansion slot | 1*M.2 E-KEY 2230 Slot CNVI, Support WiFi Module |
| 1*SIM card slot *[ext] | |
1*M.2 B-KEY Slot, Support 4/5G Module *[ext] | |
| Electrical performance | |
| Power type | DC 9-24V Wide range power supply |
| Institutional parameters | |
| size | 120mm*120mm |
| Network support | |
| Network port | 2* Realtek 8111H 10/100/1000M Lan ports |
| System support | |
| operating system | Windows 10/11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
*[ext]: This component is an extension and is not included by default.
