Product Model NANO-TGLB-2T8U

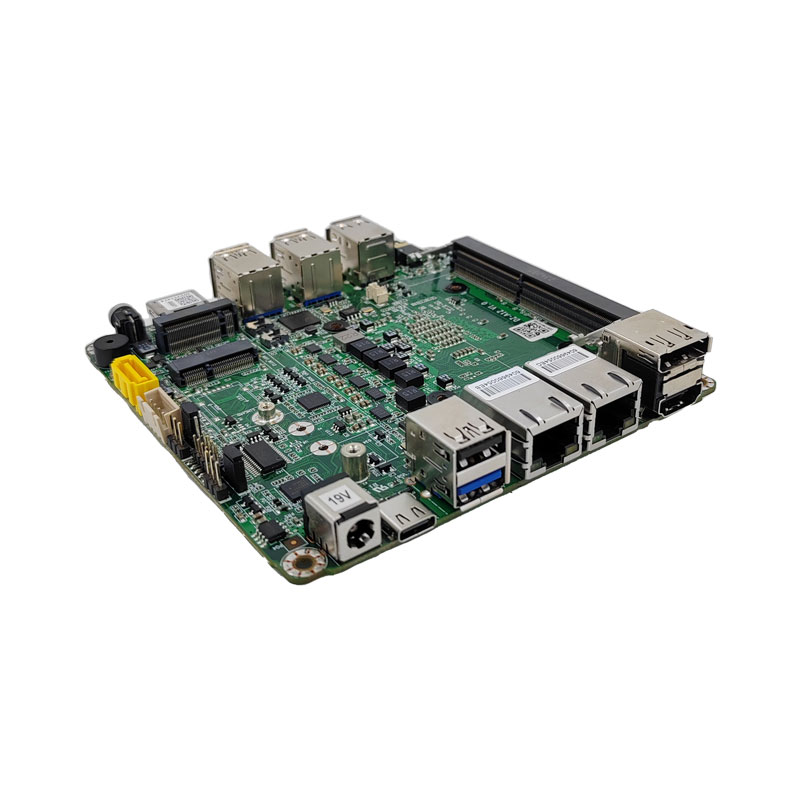

XYC Nano ITX Motherboard (Model NANO-TGLB-2T8U) supports 11th Gen Intel i3/i5/i7, 32GB DDR4, 2*Intel 2.5G NICs.
Features turbo cooler, sync/async quad display—ideal for embedded systems requiring stable performance in compact setups.
Category | content |
| Internal Central Processing Unit (CPU) | Intel Core i3-1115G4(2C4T,2.2GHz~3.9GHz.6MB Cache) |
| Intel Core i5-1145G7(4C8T.1.5GHz~4.1 GHz.8MB Cache) | |
Intel Core i7-1165G7(4C8T,4.7GHz.12MB Cache) | |
| Chipset | Based on the Intel Tiger Lake platform |
| Memory | 1 * DDR4 SODIMM slot, supporting up to 32GB |
| storage | 1* M.2 2280 M-Key, support NVME/NGFF |
1* 2.5" SATA 3.0 slot | |
| Display | |
| Triple Display | Integrated Intel® Iris® Xe Graphics eligible |
| 2*HDMI, 1*DP, 1*Type-C output | |
Supports synchronous dual display, asynchronous triple display | |
| I/O interface | |

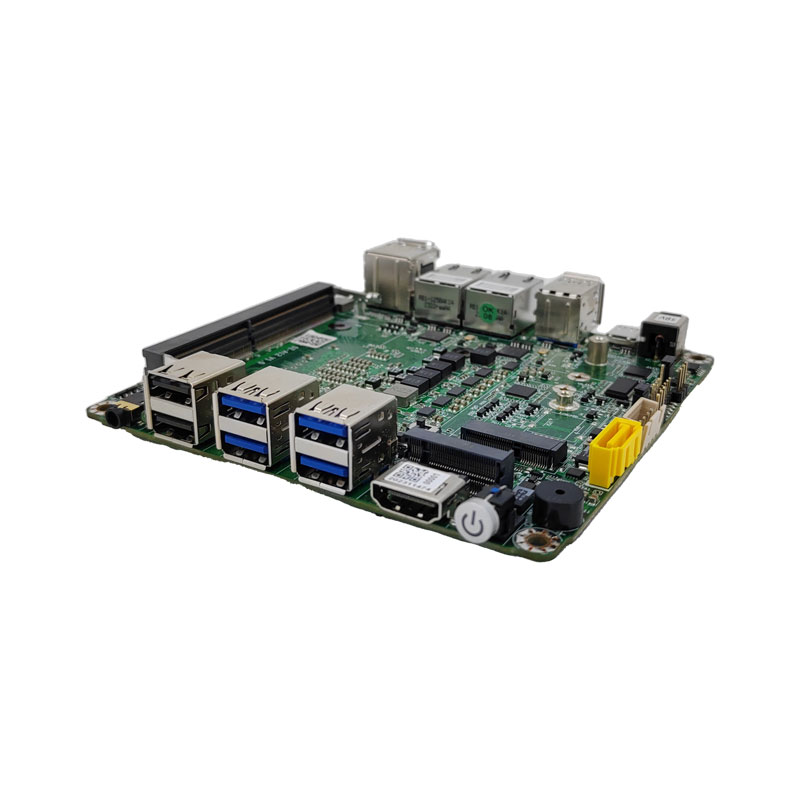

Front I/O | 1* Audio; 4*USB3.0; 2*USB2.0 |
1*HDMI;1*Power button | |
Rear I/O | 1*DC-IN; 1*Type C(support A/V & USB3.0) |
1*USB2.0; 1*USB3. | |
2*RJ 45 | |
1*HDMI; 1*DP | |
| Built in interface | 1* JME、1* JCMOS、1* JCOM、1* J_AT/ATX |
| 1* SATA、 1* SATAPWR | |
| Expansion slot | 1*M.2 E-KEY 2230/CNVi Slot, support Wifi module |
| 1*M.2 B-KEY Slot, support 4G LTE/5G module *[ext] | |
1* SIM card slot *[ext] | |
| Electrical performance | |
| Power type | Suggest using 19V 4.74A |
| Institutional parameters | |
| size | 120mm*120mm |
| Network support | |
| Network port | 2*I226-V 2.5G Ethernet |
| System support | |
| operating system | Windows 10/11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
*[ext]: This component is an extension and is not included by default.
