Product Model ITX-ADLB-1R4U

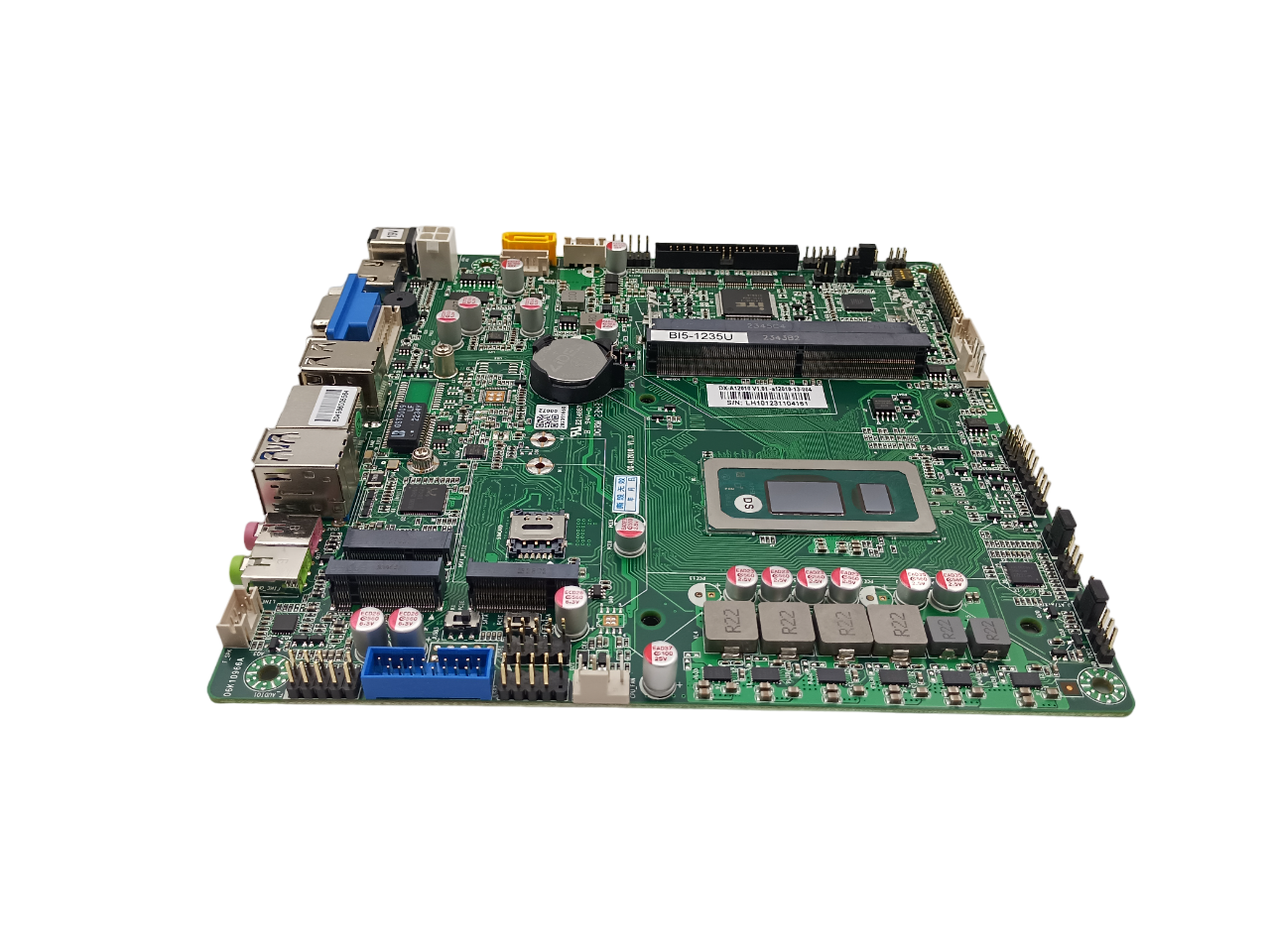

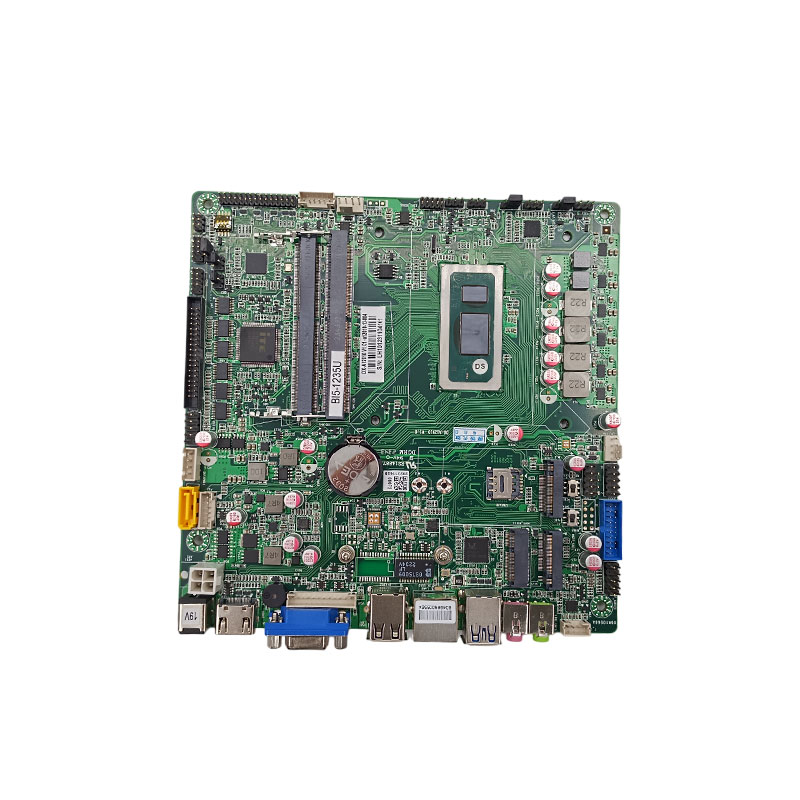

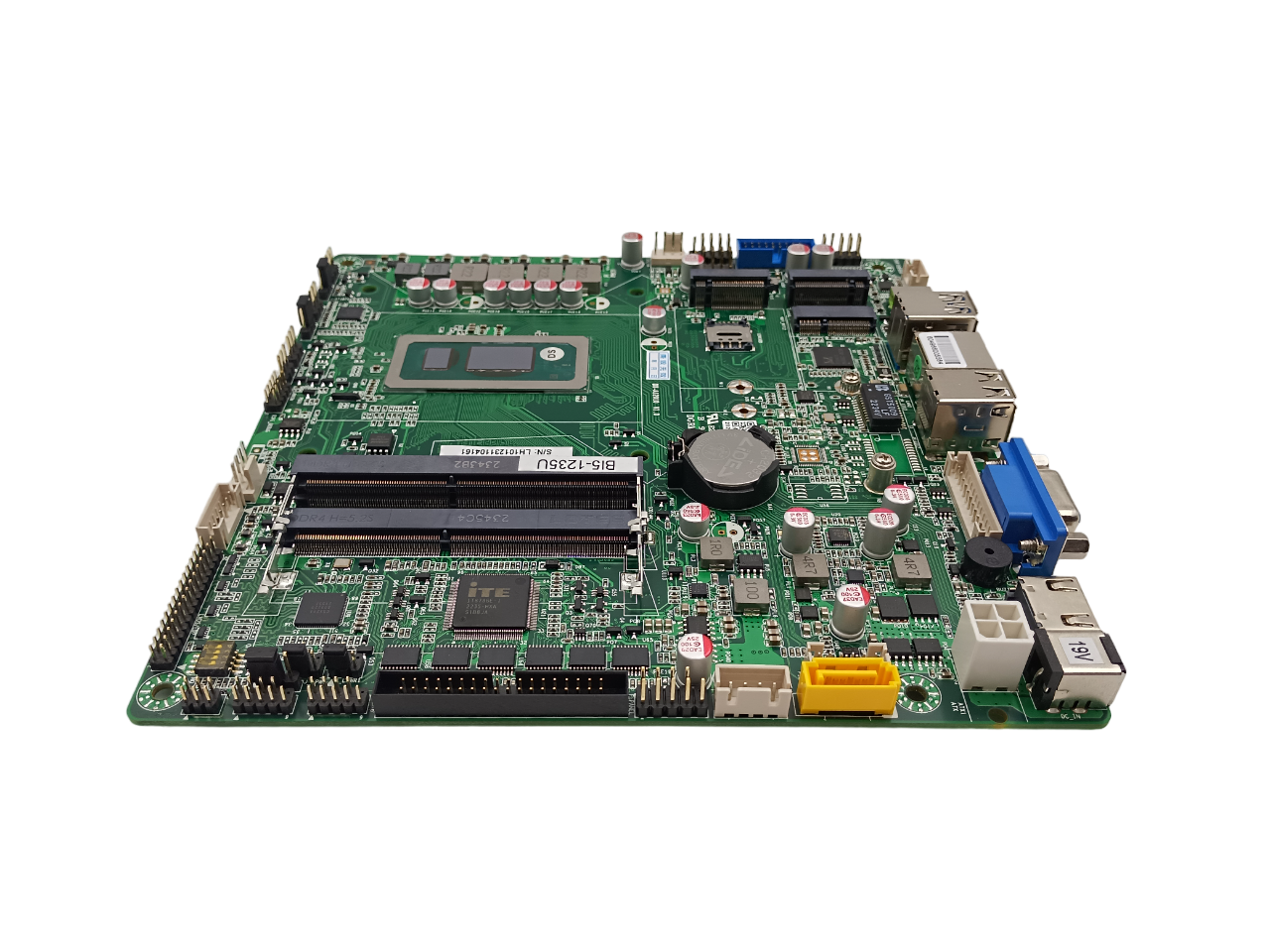

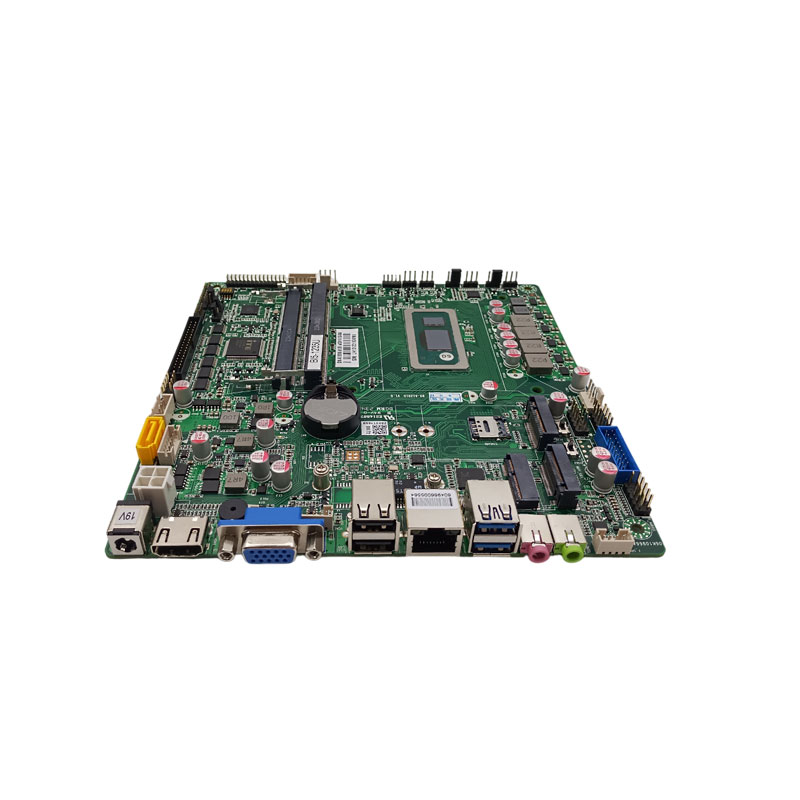

XYC Embedded Mini ITX Motherboard (Model ITX-ADLB-1R4U) supports 12th Gen Intel i3/i5, 2*DDR4 slots (max 64GB).
Features high-speed M.2, Wifi/4G/5G support, 6 extendable COM ports, and triple display—ideal for embedded industrial setups requiring robust performance.
Category | content |
| Internal Central Processing Unit (CPU) | Intel® Core i3-1215U( 2+4C/ 8T, 3.30~4.40GHz, 10MB Cache) |
Intel® Core i5-12450H( 4+4C/ 12T, 3.30~4.40GHz, 12MB Cache) | |
| Chipset | Based on the Intel Alder Lake platform |
| Memory | 2* DDR4 SO-DIMM Slots, Max. support 3200MHz 64GB RAM |
| storage | 1* M.2 2280 M-Key,2280 slot, Support NVME/NGFF |
1* SATA3.0 socket | |
| Display | |
| Triple Dispaly | Intel® UHD Graphics for 12th Gen Intel Processors |
| 1* VGA, 1*HDMI, 1*LVDS/eDP（1 out of 2, default is LVDS） | |
Support VGA, HDMI, LVDS/eDP Sync or Async triple display | |
| I/O interface | |
Rear I/O Ports | 1* HDMI; 1* VGA |
| 2* USB3.0; 2* USB2.0(Can be customized to 1* RJ-45 LAN port) | |
| 1* RJ-45 LAN Port | |
1* Line out(green), 1* MIC(Red), 1* 12V DC-IN | |
Inner I/O ports | 6* COM(COM2 Support RS232/RS485) |
6* USB 2.0 2*5Pin | |
1* LVDS/EDP(1 out of 2); 1* J_LPWR; 1* J_LPWR | |
1*SW; 1*JP1; 1*IVC | |
1* JVGA 1*12Pin(Share sampe signal with DB15) | |
1*ESP1_DEBUG; 1*JBKEN; 1*JME; 1*JMOS; 1*J-AT/AT | |
1* Front audio 2*5pin、1* Speaker1*4pin | |
1* PS2, 1* GPIO 2*5pin | |
1* 4pin ATX Powe | |
1* 2*5Pin Front panel | |
| Fan Pins | 1*CPU fan, 1*System Fan |
| Expansion slot | 1* M.2 E-KEY 2230 Slot CNVI，Support WiFi Module |
1* M.2 B-KEY Slot, Support 4G LTE Module; 1* SIM card slot | |
| Electrical performance | |
| Power type | DC 12V/19V |
| Institutional parameters | |
| size | 170mm*170mm |
| Network support | |
| Network port | 1* Realtek 8111H GbE LAN ports(Optional 2 LAN), support Wake-on-LAN/PXE |
| System support | |
| operating system | Windows 10/11; Linux |
| GPIO Support | |
| GPIO | Support 8-in/8-out GPIO |
| BIOS | 128Mb Flash ROM |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
