Product Model ITX-HSWA-1R4U

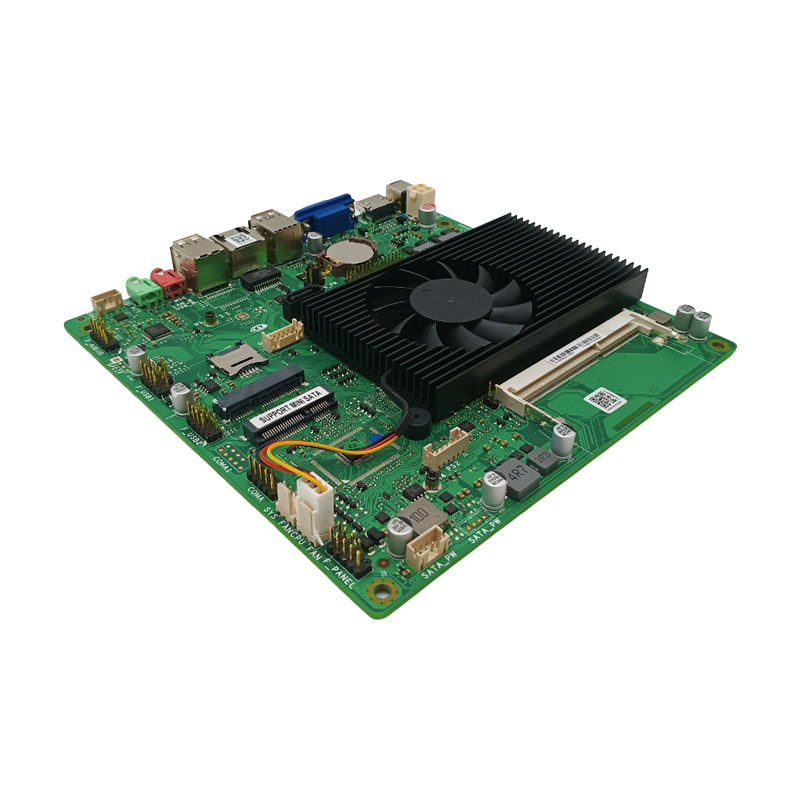

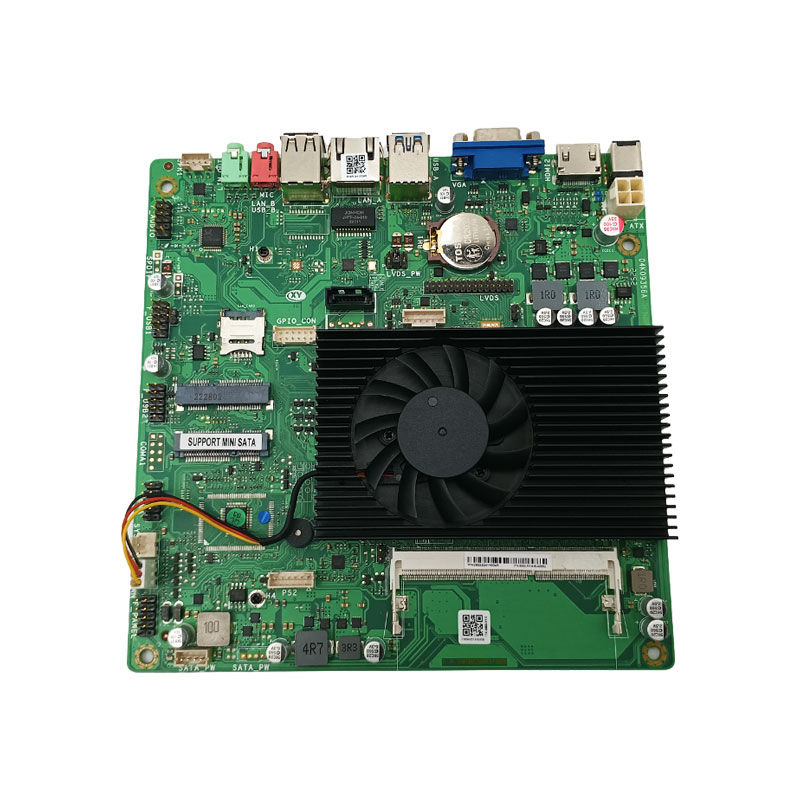

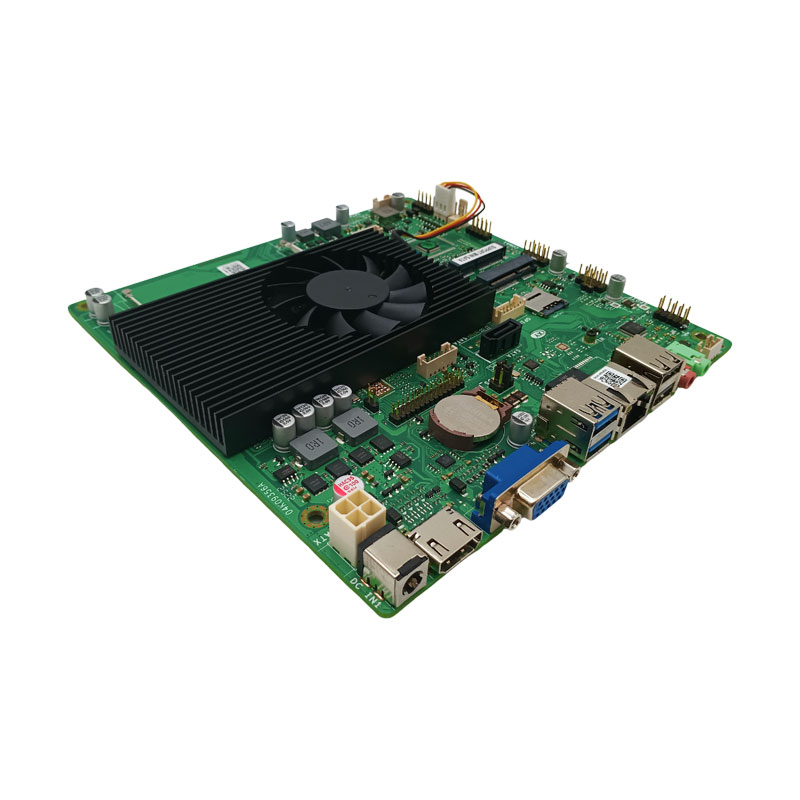

XYC Mini Motherboard (Model ITX-HSWA-1R4U) supports Intel Haswell/Broadwell low-power processors, 1*DDR3 slot (max 8GB).
Features mSATA+2.5"SATA storage, Mini PCIe for Wifi/4G, and triple display—ideal for multimedia playback setups.
Category | content |
| Internal Central Processing Unit (CPU) | lntel Core i5-4200U(2C4T,1.60GHz~2.60GHz,3MB) |
lntel Core i5-5200U(2C4T,2.20GHz~2.70GHz,3MB) | |
| Chipset | Based on Haswell/Broadwell platform |
| Memory | 1* SO-DIMM DDR3 Slot(Max support 8GB) |
| storage | 1* mSATA slot; 1* 2.5" SATA 3.0 socket |
| Display | |
| Triple Dispaly | Integrated Intel® HD Graphics 4400/ 5500 |
| 1* VGA, 1*HDMI, LVDS | |
Support Sync or Async triple display | |
| I/O interface | |

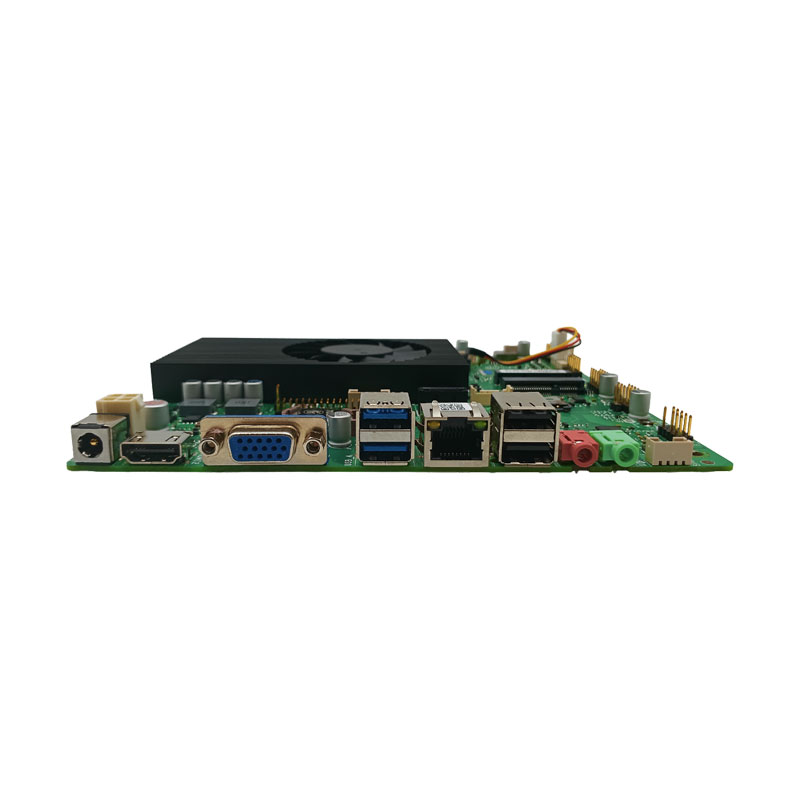

Rear I/O Ports | 1* 12V DC-IN; 1* HDMI, 1* VGA |
| 2* USB3.0,2*USB2.0 | |
| 1* RJ-45 LAN Ports | |
1* Line out(green), 1* MIC(Red) | |
Inner I/O ports | 2*5Pin COM1 RS232 |
| 2*5Pin COM2 RS232/ 485 | |
| 2*20Pin COM3~6 RS 232 | |
| 1*LVDS 2*15pin, 1*inverter 1*6pin, 1* backlight jumpers 2*3pin | |
| 2*5PIN front Audio; 1*4PIN Speaker | |
| 2x 2*5PIN, Extendable for 4* USB2.0 | |
1* LPT 2*13Pin; 1* PS2 1*6pin | |
2*5PIN Front Pane | |
1*4PIN DC_ATX; 1*4PIN CPU_FAN; 1*4PIN SYS_FAN | |
| Expansion slot | 1* full length Mini PCIE (for Wifi/ 4G LTE module) |
1*SIM card slot | |
| Electrical performance | |
| Power type | DC 12V |
| Institutional parameters | |
| size | 170mm*170mm |
| Network support | |
| Network port | 1*Realtek 8111H 1000M Lan |
| System support | |
| operating system | Windows 7/10; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
