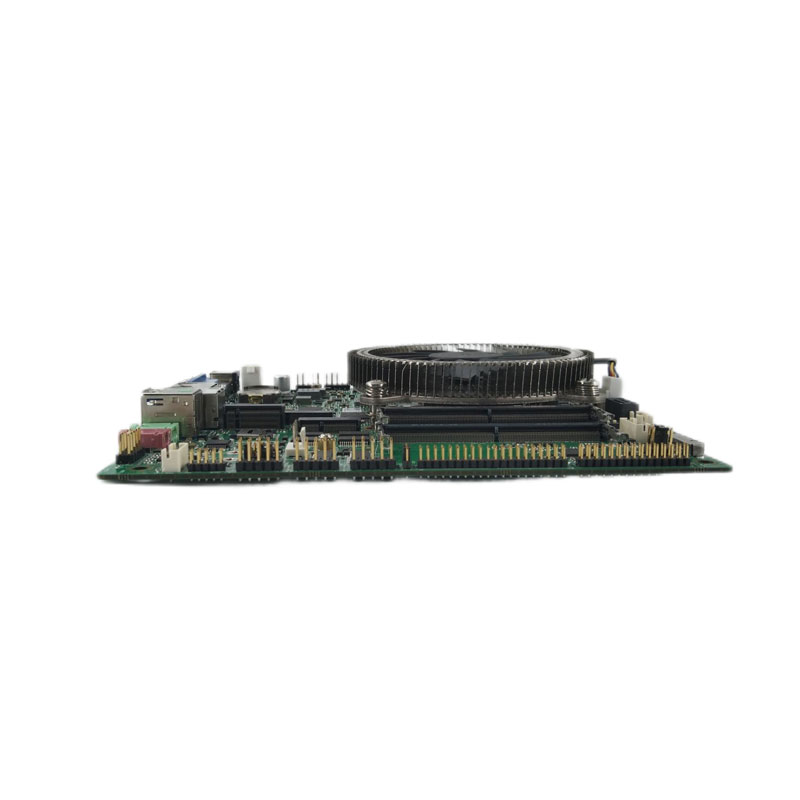

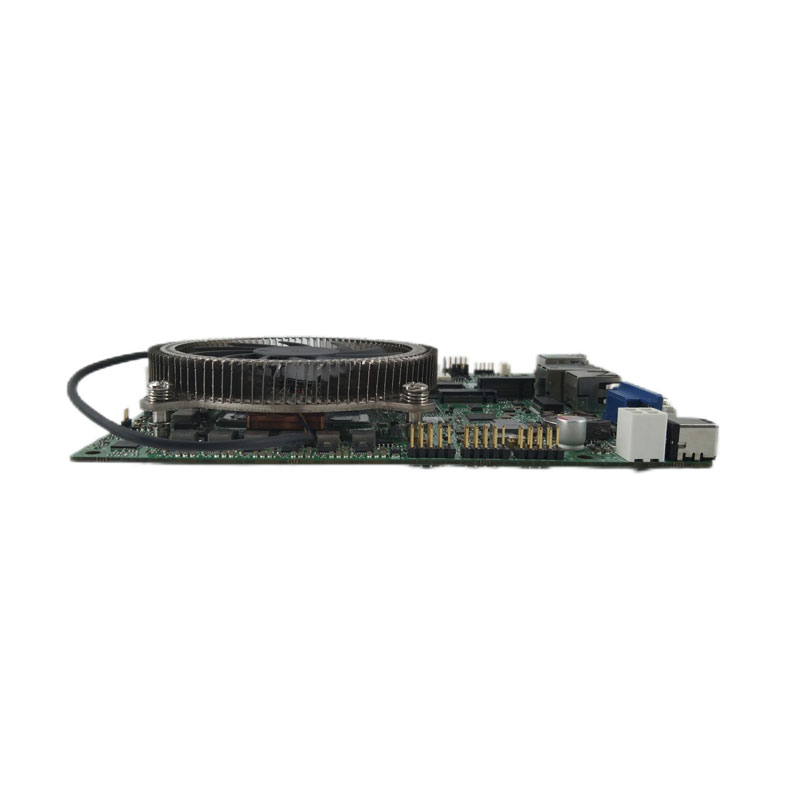

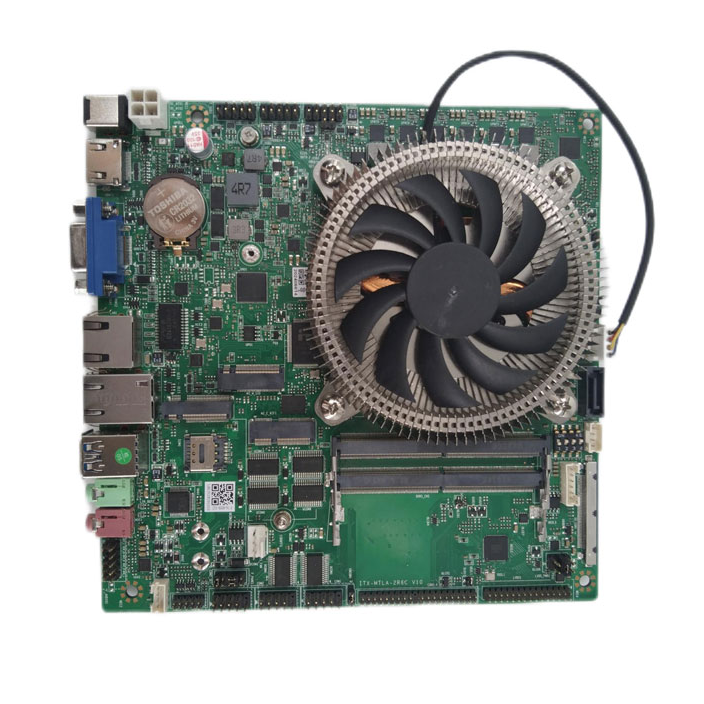

Product Model ITX-MTLA-2R
XYC High-Performance Motherboard (Model ITX-MTLA-2R) features Intel Ultra 5 125H with integrated AI Boost NPU, 2*DDR5 slots (max 96GB).
Supports Wifi/4G/5G modules, 6 extendable COM ports, and high-speed M.2—ideal for performance-focused setups requiring compact design.
Category | content |
| Internal Central Processing Unit (CPU) | Intel® Ultra 5 125H(14C18T, Max. 4.5GHz, 18MB Cache) |
| NPU: Intel® AI Boost, Max. 1.4 GHz | |
| Chipset | Based on Meteor Lake platform |
| Memory | 2* DDR5 5600MHz SO-DIMM Slot, Max. support 96GB RAM |
| storage | 1* M.2 M-Key 2280 slot, Support NVME/NGFF |
1* SATA3.0 socket | |
| Display | |
| Triple Dispaly | Integrated Intel® ARC Graphics |
| 1* VGA(Customized 1*HDMI), 1*HDMI, 1*LVDS | |
Support VGA, HDMI, LVDS Sync or Async triple display | |
| I/O interface | |

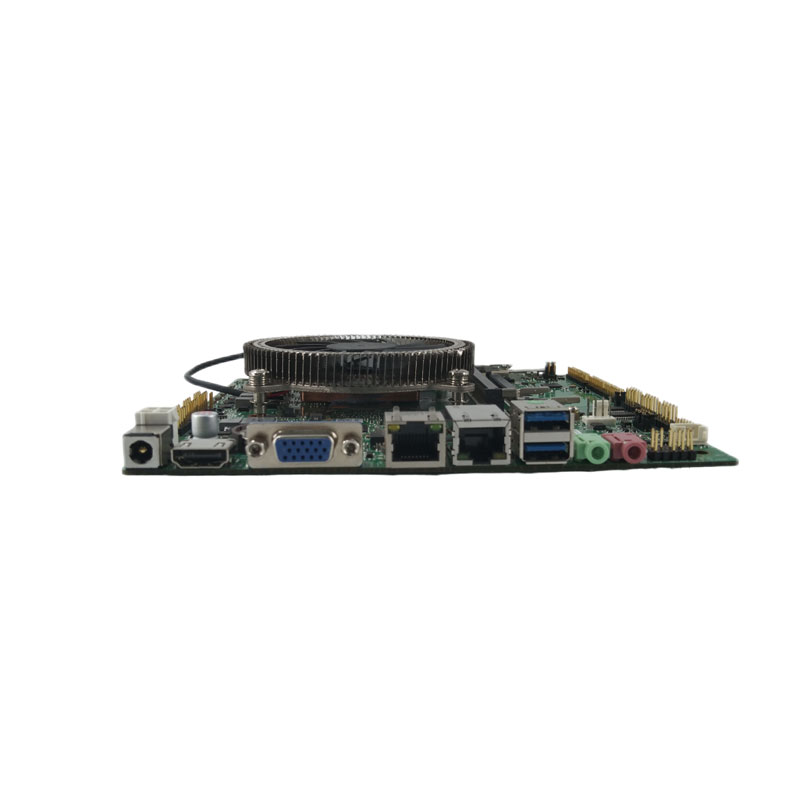

Rear I/O Ports | 1* HDMI, 1* VGA(Customized 1*HDMI) |
| 2* USB3.0 | |
| 2* RJ-45 LAN Ports（LAN1 & 2*USB3.0 Share same layout） | |
1* Line out(green), 1* MIC(Red), 1* 19V DC-IN | |
Inner I/O ports | 1* 4pin ATX Power |
| 1* LVDS; 1* LVDS Resolution DIP Switch; 1* LVDS Power Jumper; 1*INVT Backlight Power | |
| 1* Front audio 2*5pin; 1* Speaker 1*4pin | |
2* COM 2*5Pin( Support 2* COM RS-232 or 1*RS-458+ 1*RS-232) | |
| 1* COM 2*20Pin( Support 4* COM RS-232) | |
| 3* USB 2*5Pin(Support 6*USB2.0) | |
| 1* GPIO 2*5pin,Support 8-in/8-out GPIO | |
1*4pin CPU Smart fan, 1*4pin System Fan | |
| Expansion slot | 1* M.2 E-KEY 2230 Slot CNVI, Support WiFi Module |
1* M.2 B-KEY Slot, Support 4G LTE/5G Module; 1*Nano SIM card slot | |
| Electrical performance | |
| Power type | DC 19V/5A |
| Institutional parameters | |
| size | 170mm*170mm |
| Network support | |
| Network port | 2* 8111H GbE LAN ports（Optional 1 LAN）, support Wake-on-LAN/PXE |
| System support | |
| operating system | The operating system supports Windows 10/11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
