Product Model ITX-SKLA-2R4U

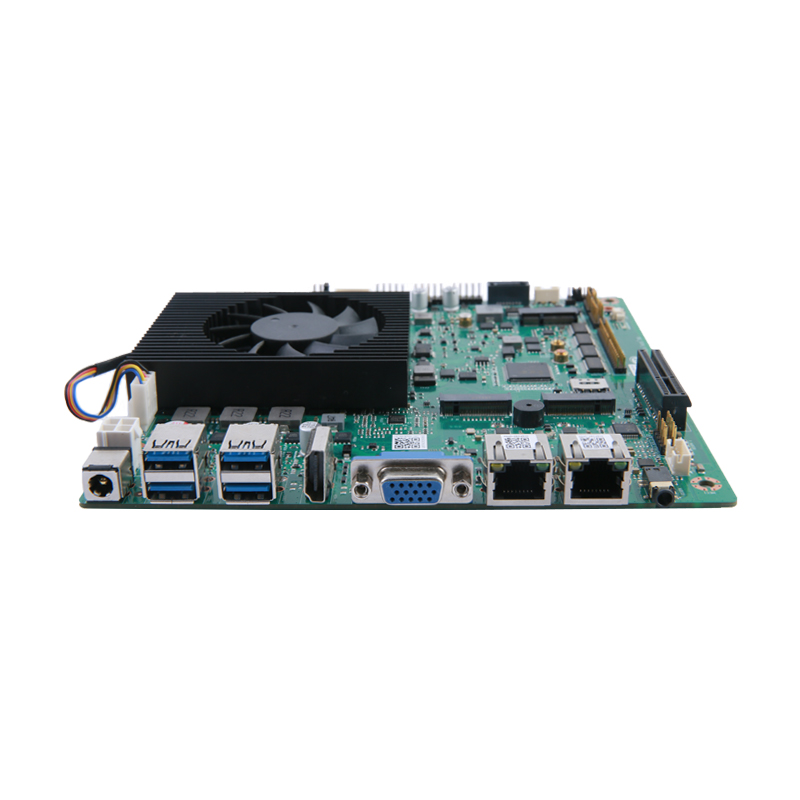

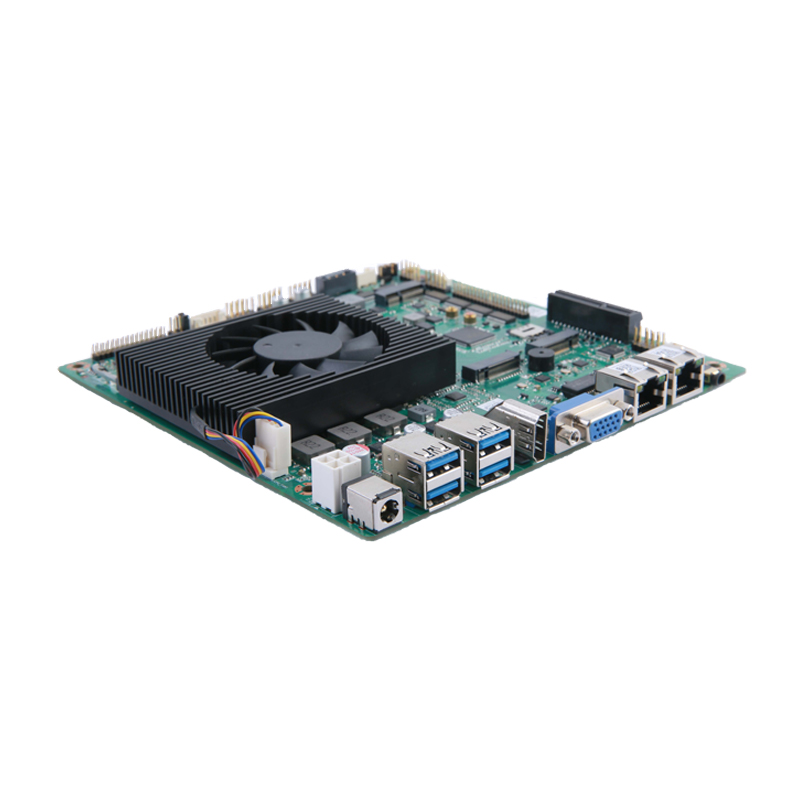

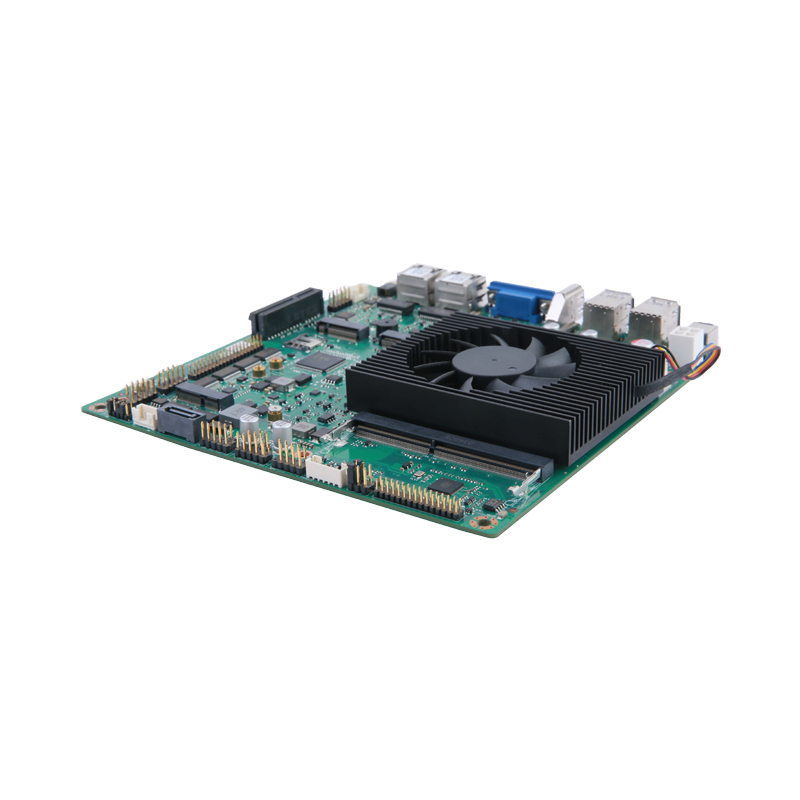

XYC Industrial Mini ITX Motherboard (Model ITX-SKLA-2R4U) supports Intel Kaby Lake-U/Skylake-U, 1DDR4 slot (max 16GB).
Features 2.5"SATA+M.2 storage, 2M.2 for WiFi/4G/5G, and triple display—ideal for industrial control systems requiring low power consumption.
Category | content |
| Internal Central Processing Unit (CPU) | Intel®Core i5-6200U (2C/4T 2.3 ~ 2.8GHz, 3MB Cache) |
Intel®Core i5-7200U (2C/4T 2.5 ~3.1GHz, 3MB Cache) | |
| Chipset | Based on Kaby Lake-U/ Skylake-U platform |
| Memory | 1* DDR4 SO-DIMM Slots, Max. support 16GB RAM |
| storage | 1* M.2 M-Key 2280 slot, Support NVME/NGFF |
| 1* SATA3.0 socket | |
| Display | |
| Triple Display | Integrated Intel® HD Graphics 520/ 620 |
| 1 * HDMI, 1 * VGA, 1 * LVDS | |
Support Sync or Async triple display | |
| I/O interface | |
Rear I/O Ports | 1* HDMI; 1* VGA |
| 4* USB3.0 | |
| 2* RJ-45 LAN Ports | |
1* Audio( 2 in 1), 1* 12V DC-IN | |
Inner I/O | 1* LVDS (2*15Pin); 1* Inverter Power (6Pin); 1* Backlight Voltage Jumper |
1* USB 2.0 (2*5Pin) | |
| 6* COM( COM2 Support RS232/RS485) | |
1* Front audio (2*5Pin) | |
1* Speaker (4Pin) | |
1* ATX Power (4Pin) | |
| 1* CPU Smart Fan (4Pin) | |
| 1* PCIE slot | |
| 1* Front panel (2*5Pin) | |
| Expansion slot | 1* M.2 E-KEY 2230 Slot, Support WiFi/CNVI Wifi Module |
1* M.2 B-KEY Slot, Support 4G LTE/5G Module; 1*SIM card slot | |
| Electrical performance | |
| Power type | DC 12V 5A |
| Institutional parameters | |
| size | 170mm*170mm |
| Network support | |
| Network port | 2*Realtek 8111H 1000M LAN |
| System support | |
| operating system | Windows 7/10; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% -95% @ 40 ℃ relative humidity (non condensing) |
** Other processors from the same CPU series can be selected to customize the product.
