Product model NUCI-ADLB-2T8U
XYC Mini PC (Model NUCI-ADLB-2T8U) is designed for home use, powered by 12th Gen Intel Core i3/i5/i7 processors (Alder Lake).
It features 1*DDR4 SODIMM slot (max 32GB) and supports M.2 NVME/NGFF SSD for flexible storage.
Equipped with 2*Intel 2.5G NICs, it enables sync dual display or async triple display, ideal for home entertainment and multitasking.
Its compact size fits easily in small spaces.
Category | content |
| Internal Central Processing Unit (CPU) | Intel Core i5 1235U(2P-cores+8E-cores, 12Threads, Max 3.30~4.40GHz, 12MB Cache) |
Intel Core i5 1240P(4P-cores+8E-cores, 16Threads, Max 3.30~4.40GHz, 12MB Cache) | |
| Chipset | Intel Alder Lake |
| Memory | 1* DDR4 SODIMM, Max support 32GB |
| storage | 1* M.2 2280 M-Key, support NVME/NGFF(Controlled by 2 switches beside M.2 slot) |
1* 2.5" SATA 3.0 slot(Customized) | |
| display | |
| Triple display | Intel® Iris® Xe Graphics eligible |
2*HDMI, 1*DP, 1*Type C output | |

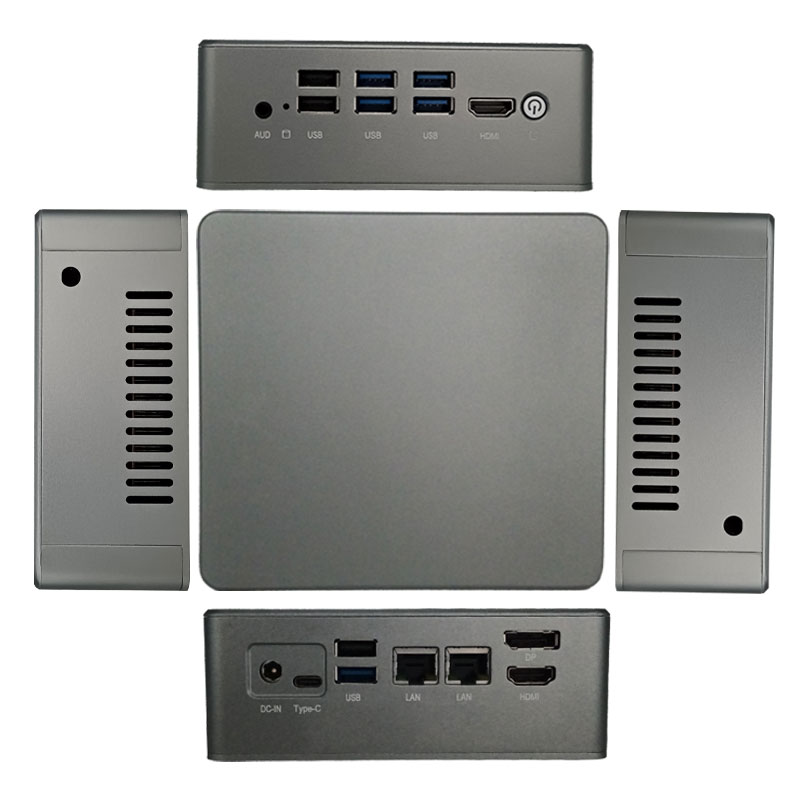

| I/O interface | |

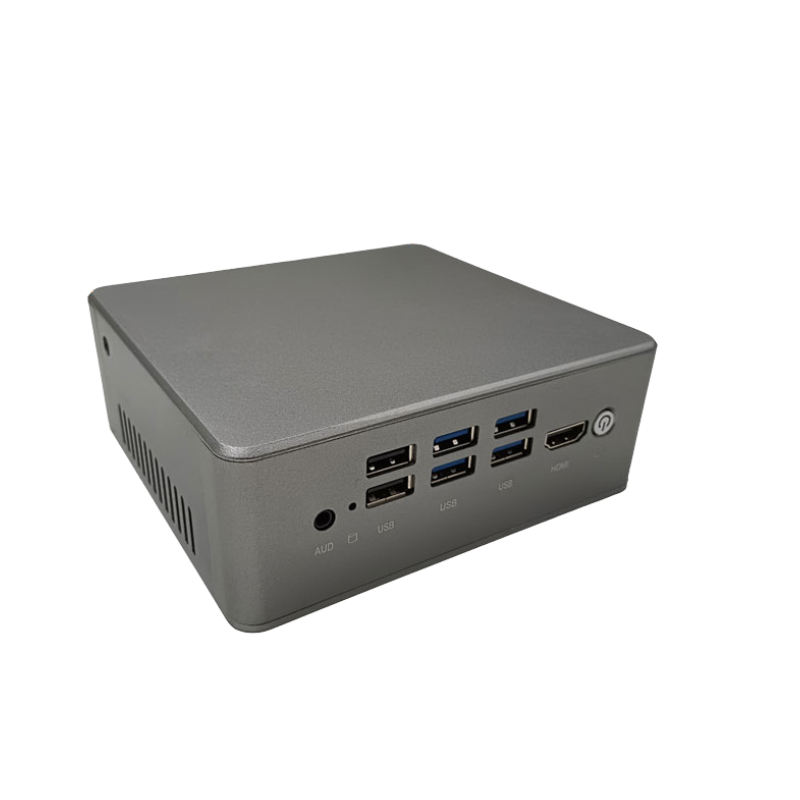

| Front I/O | 1* Audio; 4*USB3.0; 2*USB2.0; 1*HDMI1*Power button |

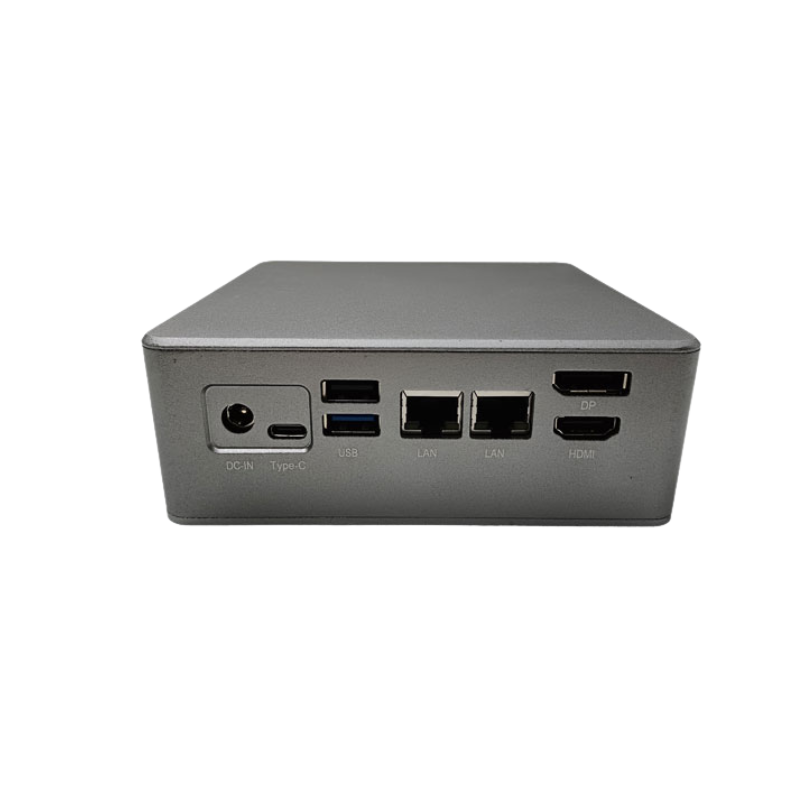

| Rear I/O | 1*DC-IN; 1*Type C; 1*USB3.0; 1*USB2.0; 2*RJ 45; 1*HDMI; 1*DP |
| Electrical performance | |
| Power type | DC 12V |
| Size & Weight | |
| Chassis size | 126mm*126mm*47mm |
| Chassis N.W. | 0.61KGS |
| Package size | 256mm*283mm*77mm |
| Package weight | 1.33KGS |
| Network support | |
| Network port | 2*Intel I226 2.5G Lan ports |
| System support | |
| operating system | Support Windows 10/Windows 11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% - 95% @40°C non-cond |
