Product model NUCI-WKLA-2T8U
XYC Office Mini PC (Model NUCI-WKLA-2T8U) supports 8th/10th Gen Intel Core i3/i5/i7, max 32GB DDR4.

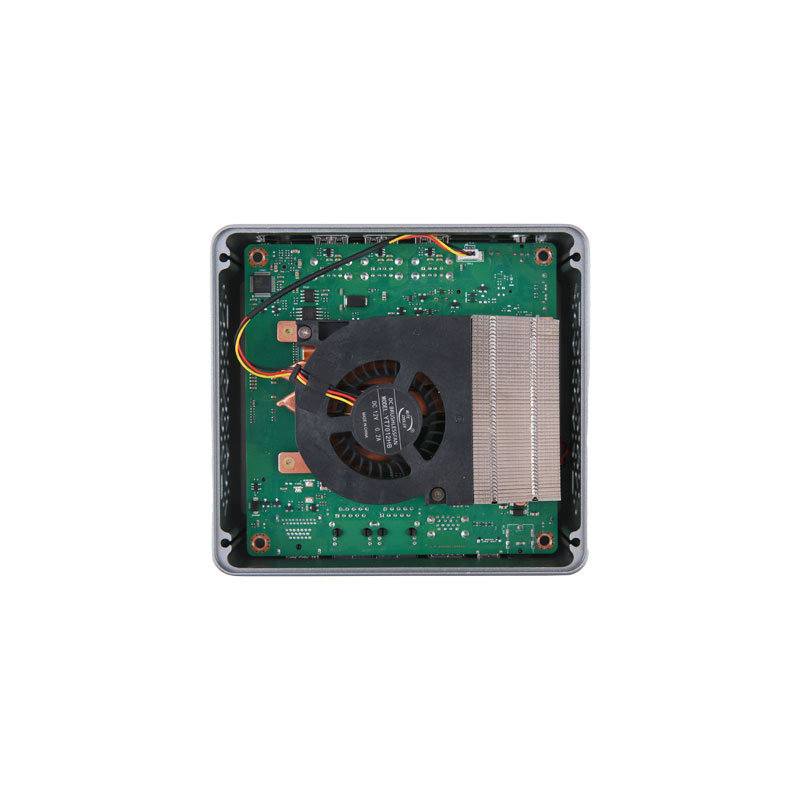

Features dual copper pipe side fan for cooling, 2x Intel 2.5G NICs, 1x Type-C + 1x HDMI + 1x DP—supports sync/async triple display.
Ideal for office workstations and multi-tasking environments.
Category | content |
| Internal Central Processing Unit (CPU) | Intel Core i3-10110U(2C4T, 2.1GHz~4.1GHz, 4MB Cache) |
| Intel Core i5-10210U(4C8T, 1.6GHz~4.2GHz, 6MB Cache) | |
| Intel Core i7-10510U(4C8T, 1.8GHz~4.9GHz, 8MB Cache) | |
| Support Core i3/i5/i7 8th, 10th CPU | |
| Chipset | Intel Whiskey Lake-U, Comet Lake-U |
| Memory | 1* DDR4 SODIMM, Max support 32GB |
| storage | 1* M.2 2280 M-Key, support NVME/NGFF |
1* 2.5" SATA 3.0 slot | |
| display | |
| Triple display | Intel® UHD Graphics for 10th Gen Intel® Processors |
1*HDMI, 1*DP, 1*Type C output | |
| I/O interface | |
| Front I/O | 1* Audio; 6*USB2.0; 1*Power button |

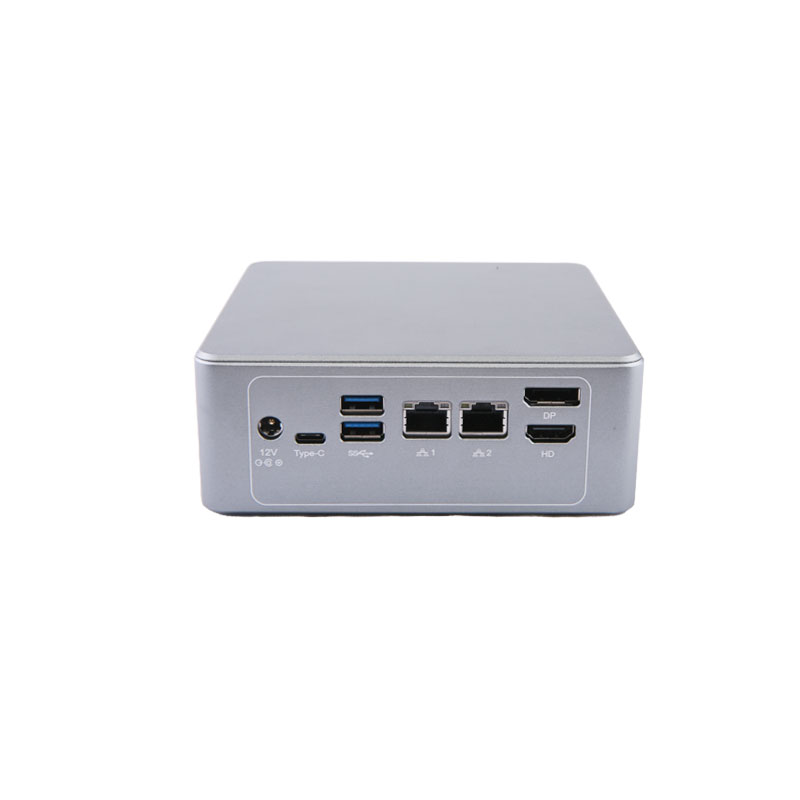

| Rear I/O | 1*DC-IN; 1*Type C; 2*USB3.0; 2*RJ 45; 1*HDMI; 1*DP |
| Electrical performance | |
| Power type | DC 12V |
| Size & Weight | |
| Chassis size | 138mm*128mm*51.6mm |
| Chassis N.W. | 0.5kgs |
| Package size | 192mm*151mm*118mm |
| Package weight | 1.2kgs |
| Network support | |
| Network port | 2*Intel I226 2.5G Lan ports |
| System support | |
| operating system | Support Windows 10/Windows 11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% - 95% @40°C non-cond |
