Product model NUCB-HSWA-1R8U
XYC Mini PC Model NUCB-HSWA-1R8U: Supports 4th/5th Gen Intel Core i3/i5/i7, 1x DDR3L SODIMM slot, GbE LAN, mSATA+2.5" SATA storage.
VGA+HDMI sync/async dual display.
Ideal for education multimedia and office terminals.
Category | content |
| Internal Central Processing Unit (CPU) | Intel Core I5-4200U(2C4T, 1.60~2.60GHz, 3MB Cache, TDP 15W) |
Intel Core I5-5200U(2C4T, 2.20~2.70GHz, 3MB Cache, TDP 15W) | |
Intel Core I3-5005U(2C4T, 2.00GHz, 3MB Cache, TDP 15W) | |
| Chipset | Based on Intel Haswell / Broadwell platform |
| Memory | 1*DDR3L SO-DIMM RAM slot |
| storage | 1* full length mSATA slot |
1* 2.5" SATA socket | |
| display | |
| Dual display | Integrated Intel® HD Graphics 4400/5500 |
1*HDMI,1*VGA,Customizable 2*HDMI output | |
| I/O interface | |

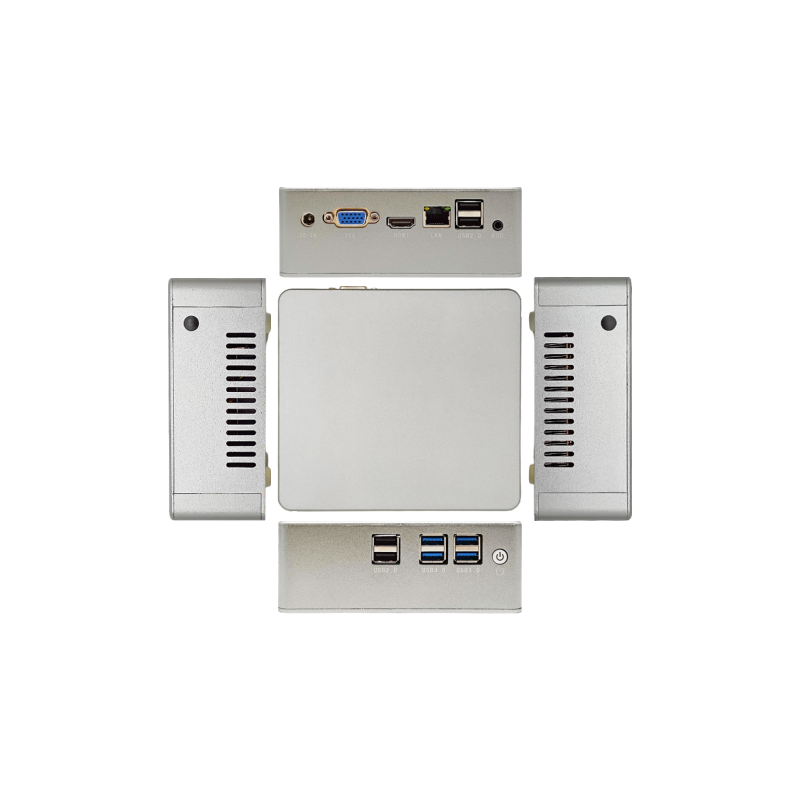

| Front I/O | 1*Power button; 4*USB3.0;,2*USB2.0 |

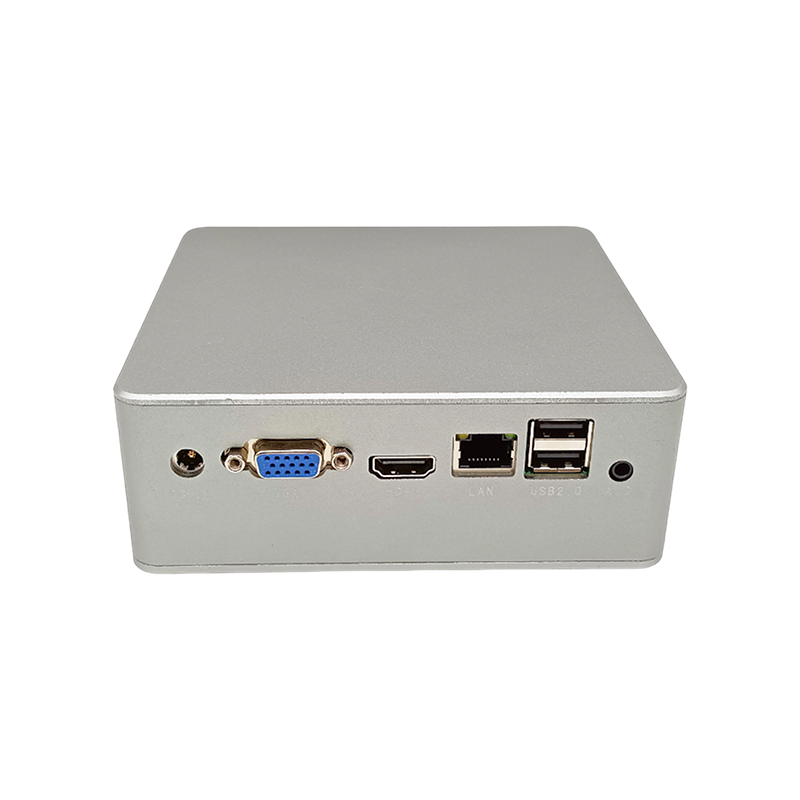

| Rear I/O | 1*DC-IN,1*LAN,2*USB2.0,1*VGA,1*HDMI |
| Electrical performance | |
| Power type | DC 12V |
| Size & Weight | |
| Chassis size | 126mm*126mm*52mm |
| Chassis N.W. | 0.5KG |
| Package size | 192mm*151mm*118mm |
| Package weight | 1.2KG |
| Network support | |
| Network port | 1*Realtek 8111H 10~1000M Lan, support PXE |
| System support | |
| operating system | Support Windows 7/Windows 10; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% - 95% @40°C non-cond |
