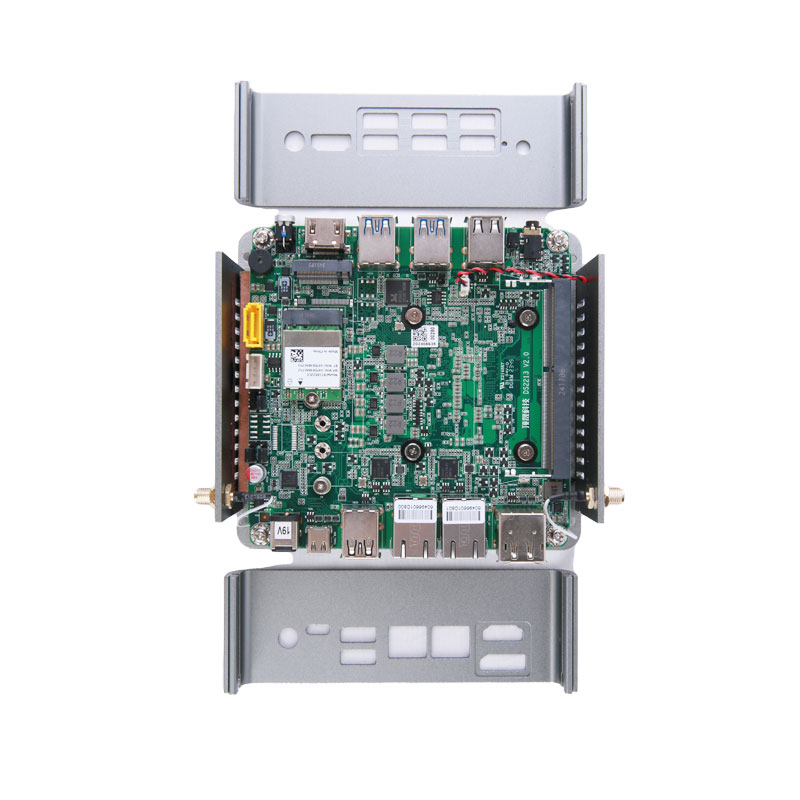

Product model NUCI-TGLA-2T8U
XYC Mini PC (Model NUCI-TGLA-2T8U) supports 11th Gen Intel Core i3/i5/i7, 32GB DDR4, and features a turbo cooler fan for efficient heat dissipation.
Equipped with 2x Intel 2.5G NICs, 1x Type-C, 2x HDMI, 1x DP—supports sync/async quad display.
Ideal for IoT applications and multi-tasking workflows.
Category | content |
| Internal Central Processing Unit (CPU) | Intel Core i3-1115G4(2C4T, 1.7GHz~4.1GHz, 6MB Cache) |
Intel Core i5-1145G7(4C8T, 1.1GHz~4.4GHz, 8MB Cache) | |
Intel Core i7-1165G7(4C8T, 1.2GHz~4.7GHz, 12MB Cache) | |
| Chipset | Intel Tiger Lake |
| Memory | 1* DDR4 SODIMM, Max support 32GB |
| storage | 1* M.2 2280 M-Key, support NVME/NGFF |
1* 2.5" SATA 3.0 slot | |
| display | |
| Triple display | Intel® UHD Graphics for 11th Gen Intel® Processors |
2*HDMI, 1*DP, 1*Type C output | |
| I/O interface | |

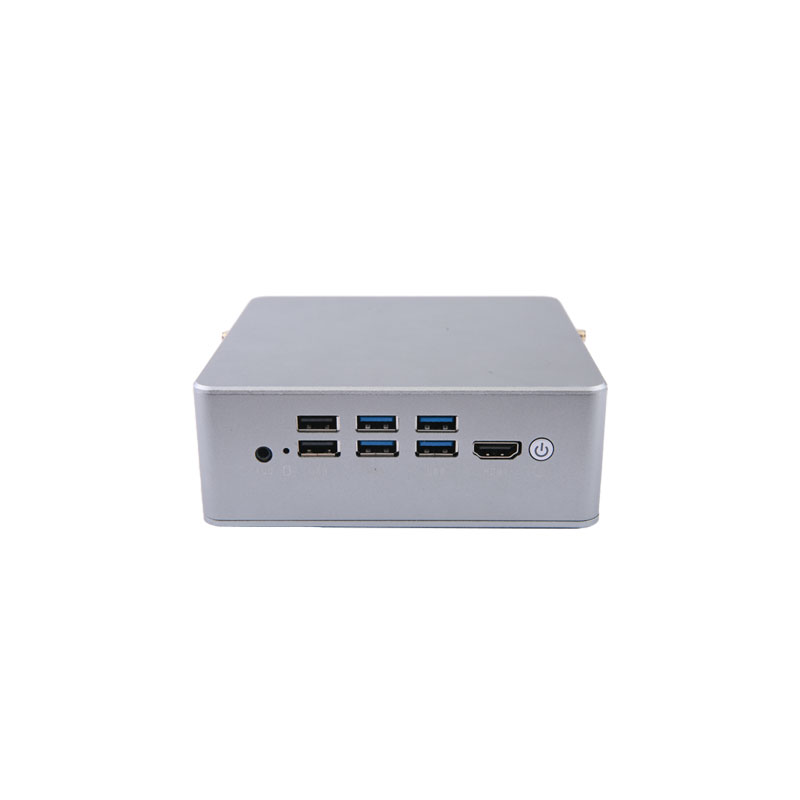

| Front I/O | 1* Audio; 4*USB3.0; 2*USB2.0; 1*HDMI1*Power button |

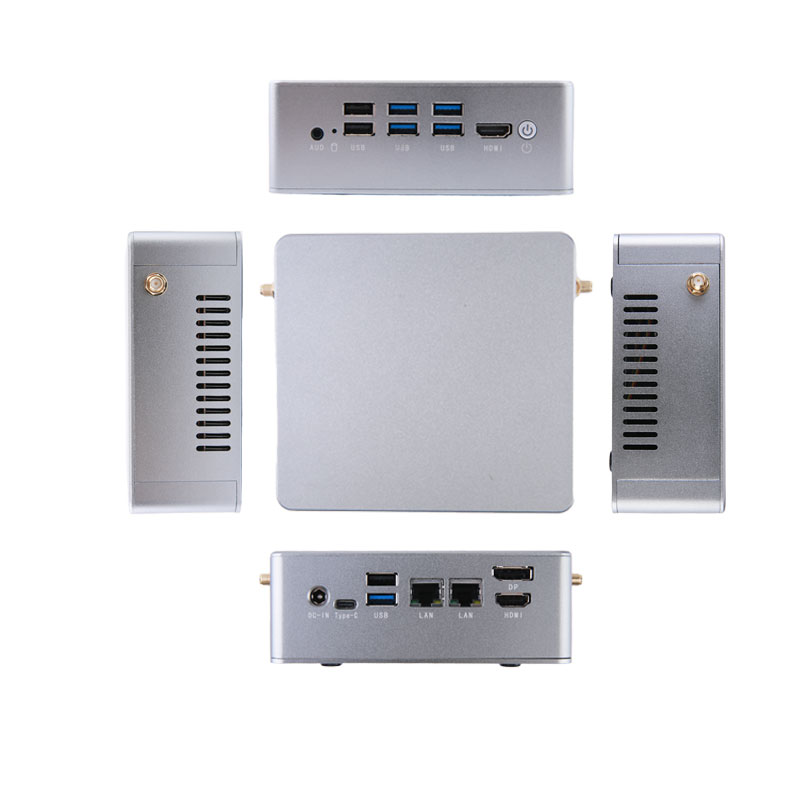

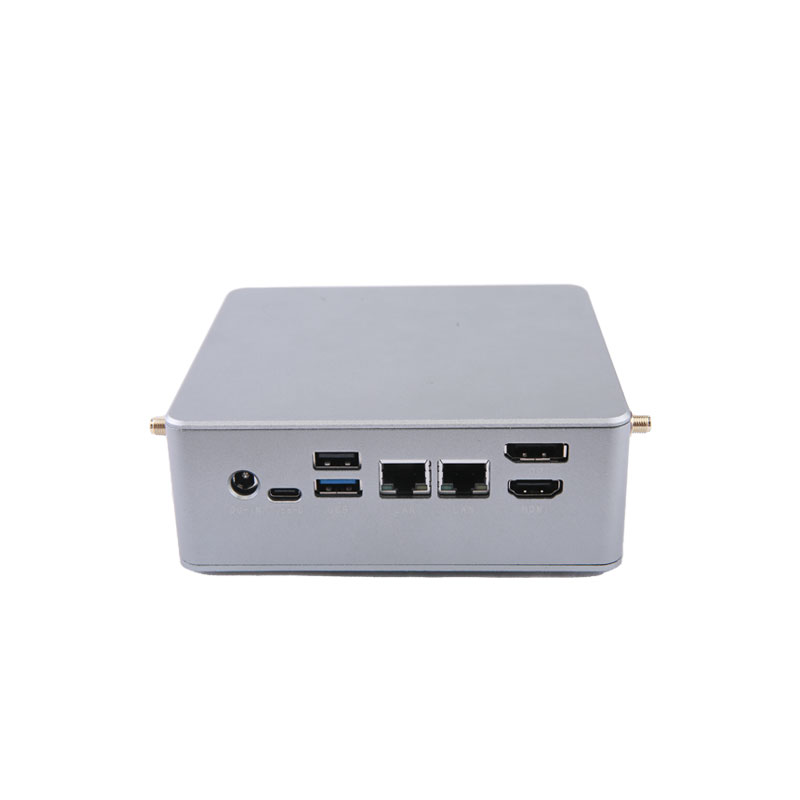

| Rear I/O | 1*DC-IN; 1*Type C; 1*USB3.0; 1*USB2.0; 2*RJ 45; 1*HDMI; 1*DP |
| Electrical performance | |
| Power type | DC 12V |
| Size & Weight | |
| Chassis size | 126mm*126mm*47mm |
| Chassis N.W. | 0.61KGS |
| Package size | 256mm*283mm*77mm |
| Package weight | 1.33KGS |
| Network support | |
| Network port | 2*Intel I226 2.5G Lan ports |
| System support | |
| operating system | Support Windows 10/Windows 11; Linux |
| Environmental parameters | |
| working temperature | -20℃~55℃ |
| Storage temperature | -55℃~85℃ |
| Working humidity | 5% - 95% @40°C non-cond |
